Diagnostic Test

T-CASE POSITION SENSOR VOLTAGE BELOW 0.4 OF A VOLT
NOTE:
If DTCs C1403-11 and C2110-11 are both present, perform the diagnostic procedure for C2110-11 before continuing with this test procedure.
1. Ignition on, engine not running.
2. With the scan tool, read the T-Case Position Sensor voltage in the DTCM.
  Is the voltage below 0.4 of a volt?

  Yes
  - Go To 2.
  No
  - Go To 8.

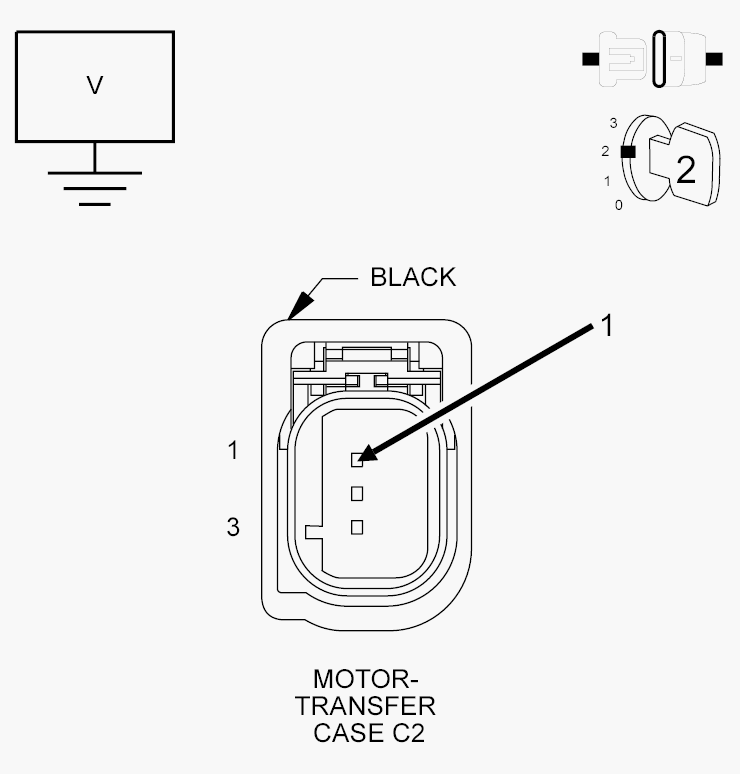

(K504) DRIVETRAIN 5-VOLT SUPPLY CIRCUIT FOR VOLTAGE

Fig 1: Checking Drivetrain 5-Volt Supply Circuit For Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the Transfer Case Motor C2 harness connector.
3. Ignition on, engine not running.
4. Measure the voltage of the (K504) Drivetrain 5-volt Supply circuit at the Transfer Case Motor C2 harness connector.
  Choose an answer that matches the voltage measured?

  Below 4.5 volts
  - Go To 3.
  Above 5.5 volts
  - Go To 4.
  Between 4.5 volts and 5.5 volts
  - Go To 5.

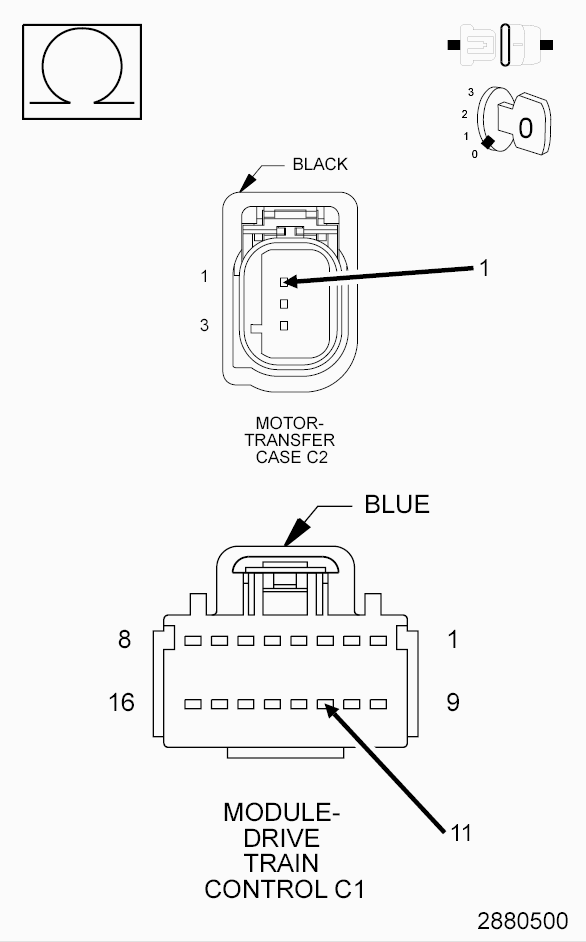

(K504) DRIVETRAIN 5-VOLT SUPPLY CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

Fig 2: Checking Drivetrain 5-Volt Supply Circuit For An Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the DTCM C1 harness connector.
3. Measure the resistance of the (K504) Drivetrain 5-volt Supply circuit between the DTCM C1 and the Transfer Case Motor C2 harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (K504) Drivetrain 5-volt Supply circuit for an open or high resistance.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 4.

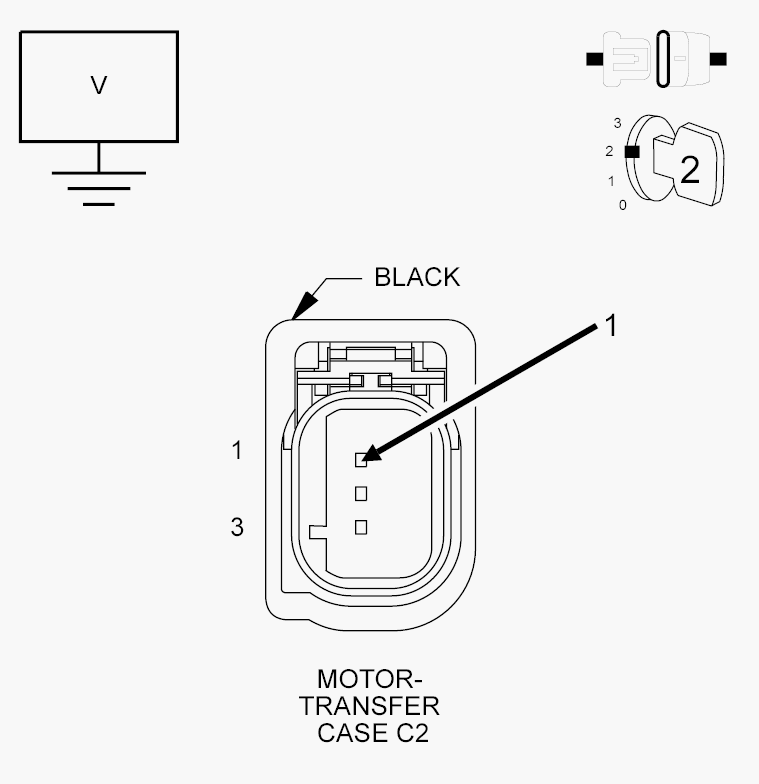

(K504) DRIVETRAIN 5-VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Fig 3: Checking Drivetrain 5-Volt Supply Circuit Shorted To Voltage
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (K504) Drivetrain 5-volt Supply circuit at the Transfer Case Motor C2 harness connector.
  Is the voltage above 5.5 volts?

  Yes
  - Repair the (K504) Drivetrain 5-volt Supply circuit for a short to voltage.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 5.

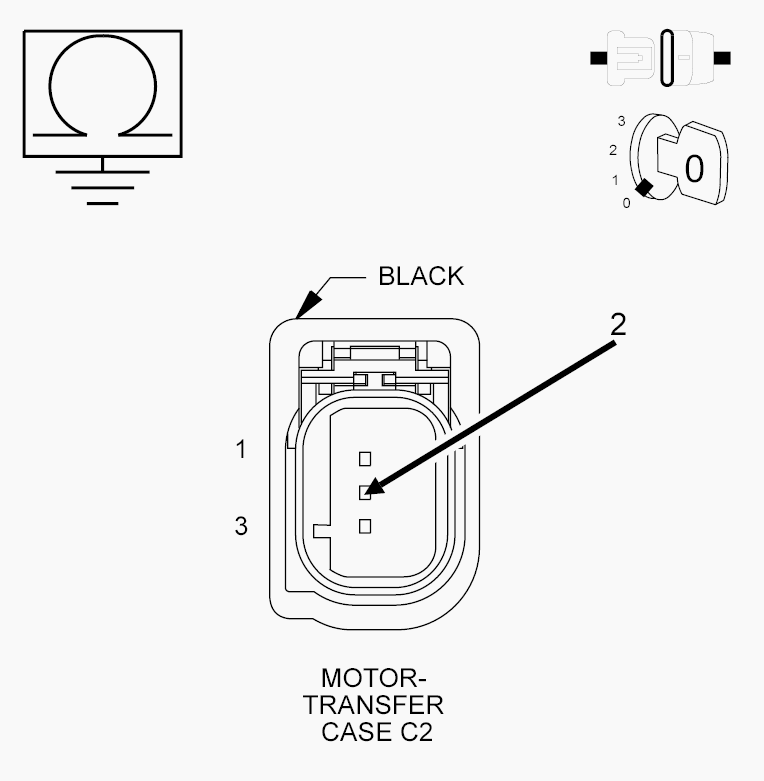

(T313) MODE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

Fig 4: Checking Mode Sensor Signal Circuit Shorted To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position
2. Disconnect the DTCM C1 harness connector.
3. Measure the resistance between ground and the (T313) Mode Sensor Signal circuit at the Transfer Case Motor harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (T313) Mode Sensor Signal circuit for a short to ground.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 6.

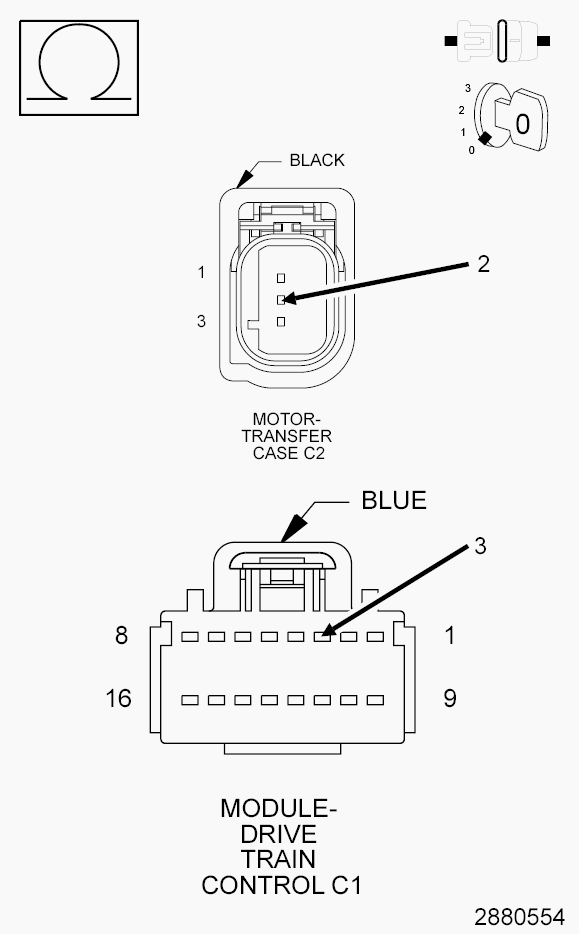

(T313) MODE SENSOR SIGNAL CIRCUIT OPEN

Fig 5: Checking Mode Sensor Signal Circuit Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (T313) Mode Sensor Signal circuit between the DTCM C1 harness connector and the Transfer Case Motor harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T313) Mode Sensor Signal circuit for an open.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 7.
TRANSFER CASE MOTOR/ENCODER
1. Turn the ignition off to the lock position
2. Reconnect the DTCM C1 harness connector.
3. Connect a jumper wire between the (T313) Mode Sensor Signal circuit and the (K504) Drivetrain 5 volt supply circuit at the Transfer Case Motor C2 harness connector.
4. Ignition on, engine not running.
5. With the scan tool, read the T-Case Position Sensor voltage in the DTCM.
6. The displayed voltage should be between 4.5 volts and 5.5 volts with the jumper wire in place.
  Does the voltage display as described?

  Yes
  - Replace the Transfer Case Motor in accordance with the Service Information. Refer to MOTOR, SHIFT , REMOVAL .
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Replace the Drive Train Control Module (DTCM) in accordance with the Service Information. Refer to MODULE, DRIVETRAIN CONTROL , REMOVAL .
  - Perform the DTCM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
INTERMITTENT WIRING HARNESS AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the wiring diagram/schematic as a guide, inspect the wiring harness and connectors.
3. Wiggle test the wiring harness and connectors while monitoring the scan tool data relative to this circuit.
4. Look for the data to change or for the DTC to reset during the wiggle test.
5. While monitoring the scan tool data relative to this circuit, move the selector switch to each position several times.
6. Look for the data to change other than as expected or for the DTC to reset.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the DTCM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time.
