Module, Engine Control: Installation: Installation

Fig 1: Identifying 2.0L Diesel ECM

Courtesy of CHRYSLER LLC

1. Install ECM (3) on mounting bracket. Torque fastener to 10.7N.m (95 lbs. in.).
2. Connect both ECM electrical connectors (1).

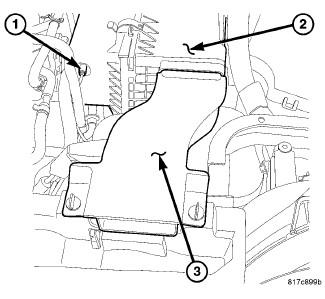

   Fig 2: Air Inlet Duct

   Courtesy of CHRYSLER LLC
3. Install air filter housing assembly (2). Refer to BODY, AIR CLEANER, INSTALLATION or BODY, AIR CLEANER, INSTALLATION .
4. Connect vacuum hose (1).
5. Connect negative battery cable.
6. Install air inlet tube (3).
7. Reprogram ECM. Refer to MODULE, ENGINE CONTROL, STANDARD PROCEDURE .
