B1868-Driver Passenger Window Switch Circuit Stuck: Notes

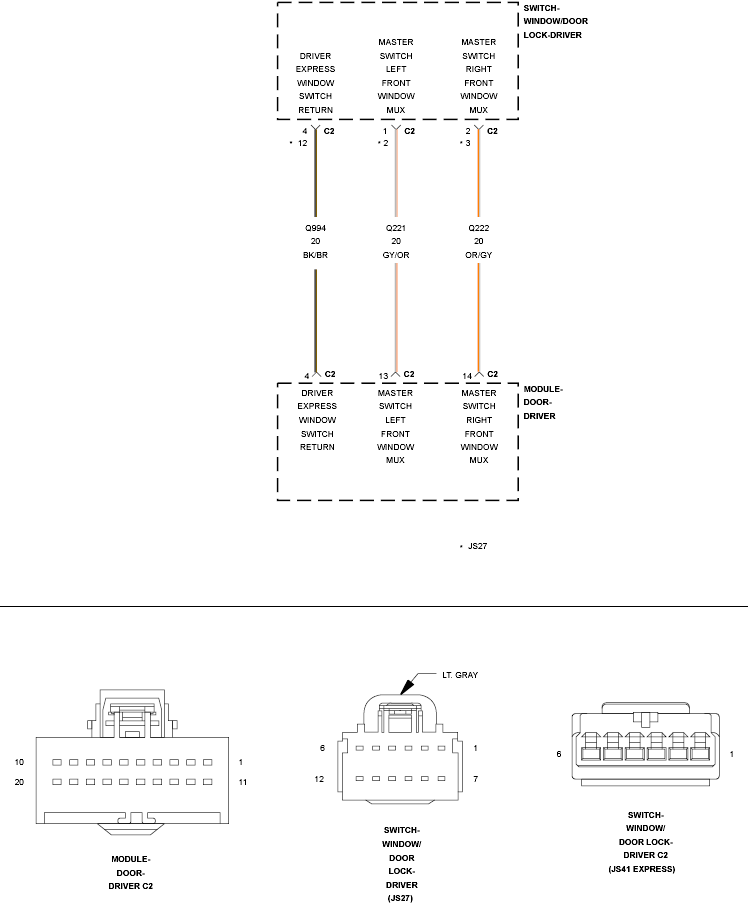

Fig 1: Driver Window Switch Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

This test shows graphics, circuit numbers and text for a Left Hand Drive (LHD) vehicle. For a Right Hand Drive (RHD) vehicle, refer to the schematic for the different circuit numbers, cavities and names.

NOTE:

Even though the JS27 (Convertible) is not equipped with the Express (AUTO) Up feature, the front window circuits are still referred to as "EXPRESS".
