B185F-Passenger Window Control Circuit Low: Notes

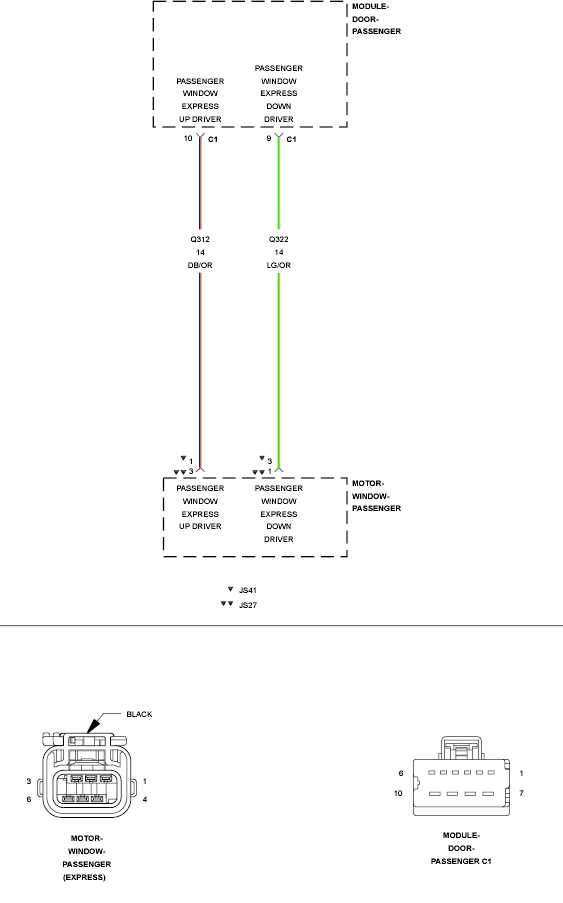

Fig 1: Passenger Window Control Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

Even though the JS27 (Convertible) is not equipped with the Express (AUTO) Up feature, the front window circuits are still referred to as "EXPRESS".
