B1865-Passenger Window Position Sensor Circuit Performance: Notes

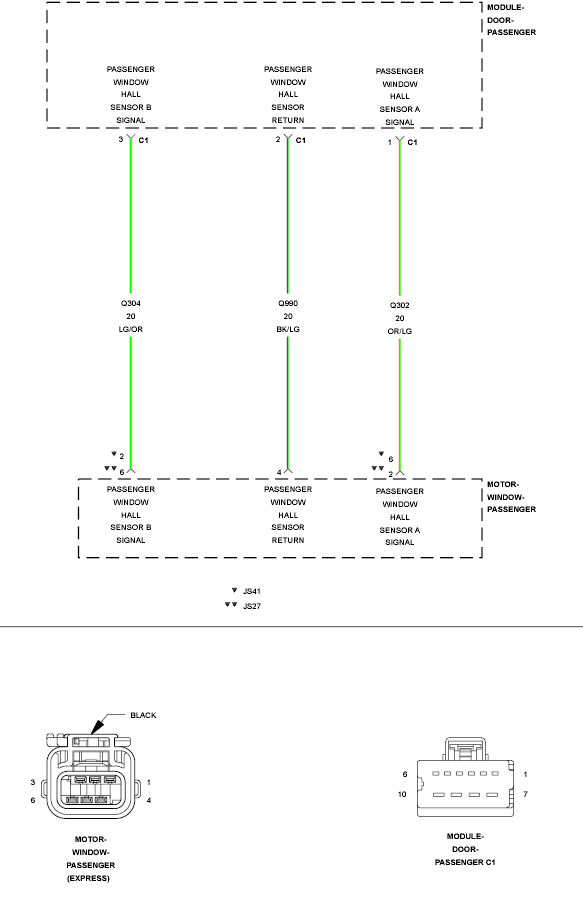

Fig 1: Passenger Window Position Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
