Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1-1534704-1

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 24

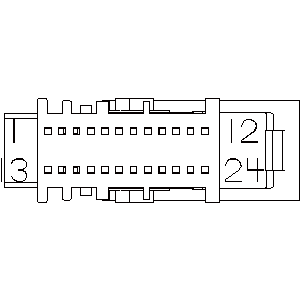

Fig 1: Module-Occupant Restraint Controller C1 Connector End View

Courtesy of CHRYSLER

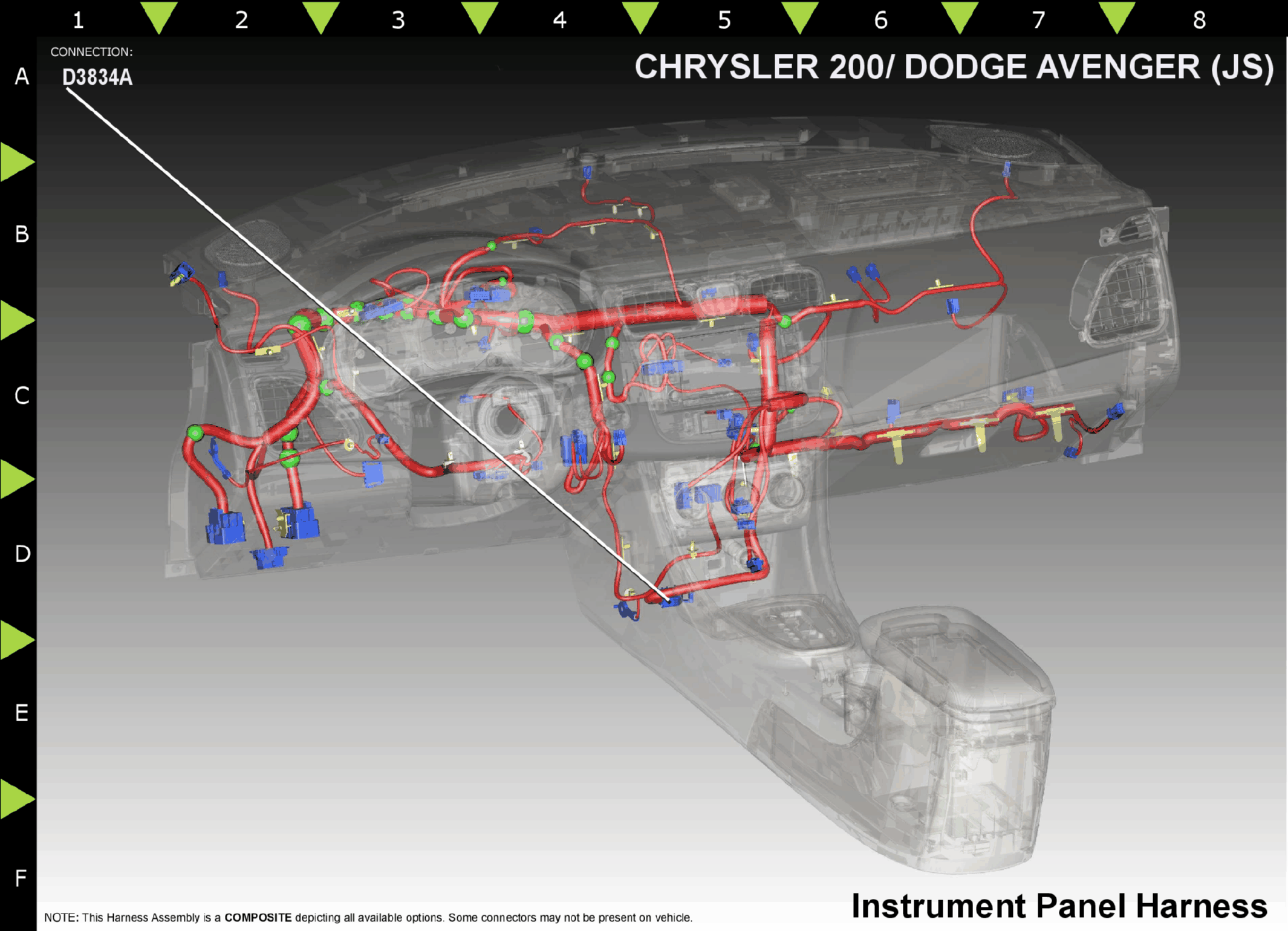

Fig 2: Module-Occupant Restraint Controller C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D54

CAN B (-)

N/A

D55

WT/OR

CAN B (+)

N/A

R261

LB/WT

DRIVER SEAT POSITION SENSOR DATA

N/A

R263

LB/VT

DRIVER SEAT POSITION SENSOR VOLTAGE

N/A

A16

R42

LB/BR

PASSENGER SQUIB 1 LINE 2

N/A

A13

R43

LG/BR

DRIVER SQUIB 1 LINE 2

N/A

A15

R44

LB/OR

PASSENGER SQUIB 1 LINE 1

N/A

A14

R45

LG/OR

DRIVER SQUIB 1 LINE 1

N/A

A17

R61

LG/VT

DRIVER SQUIB 2 LINE 2

N/A

A20

R62

LB/VT

PASSENGER SQUIB 2 LINE 2

N/A

A18

R63

LG/WT

DRIVER SQUIB 2 LINE 1

N/A

A19

R64

LB/WT

PASSENGER SQUIB 2 LINE 1

N/A

A12

R79

LB/VT

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

R80

VT/LB

RIGHT FRONT IMPACT SENSOR SIGNAL

N/A

A11

R81

LB/WT

LEFT FRONT IMPACT SENSOR GROUND

N/A

A10

R82

WT/LB

RIGHT FRONT IMPACT SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
