Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: Unibody

Color: YELLOW

Gender: FEMALE

Part Number: 1-1534700-1

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 24

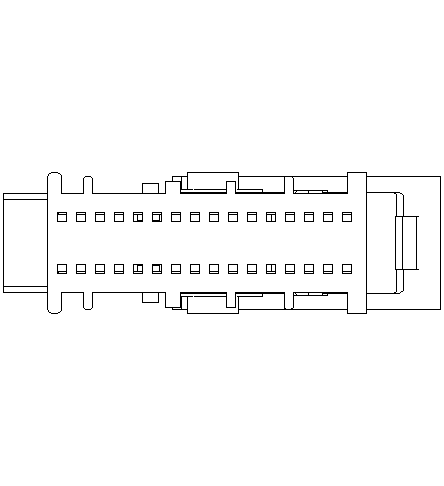

Fig 1: Module-Occupant Restraint Controller C2 Connector End View

Courtesy of CHRYSLER

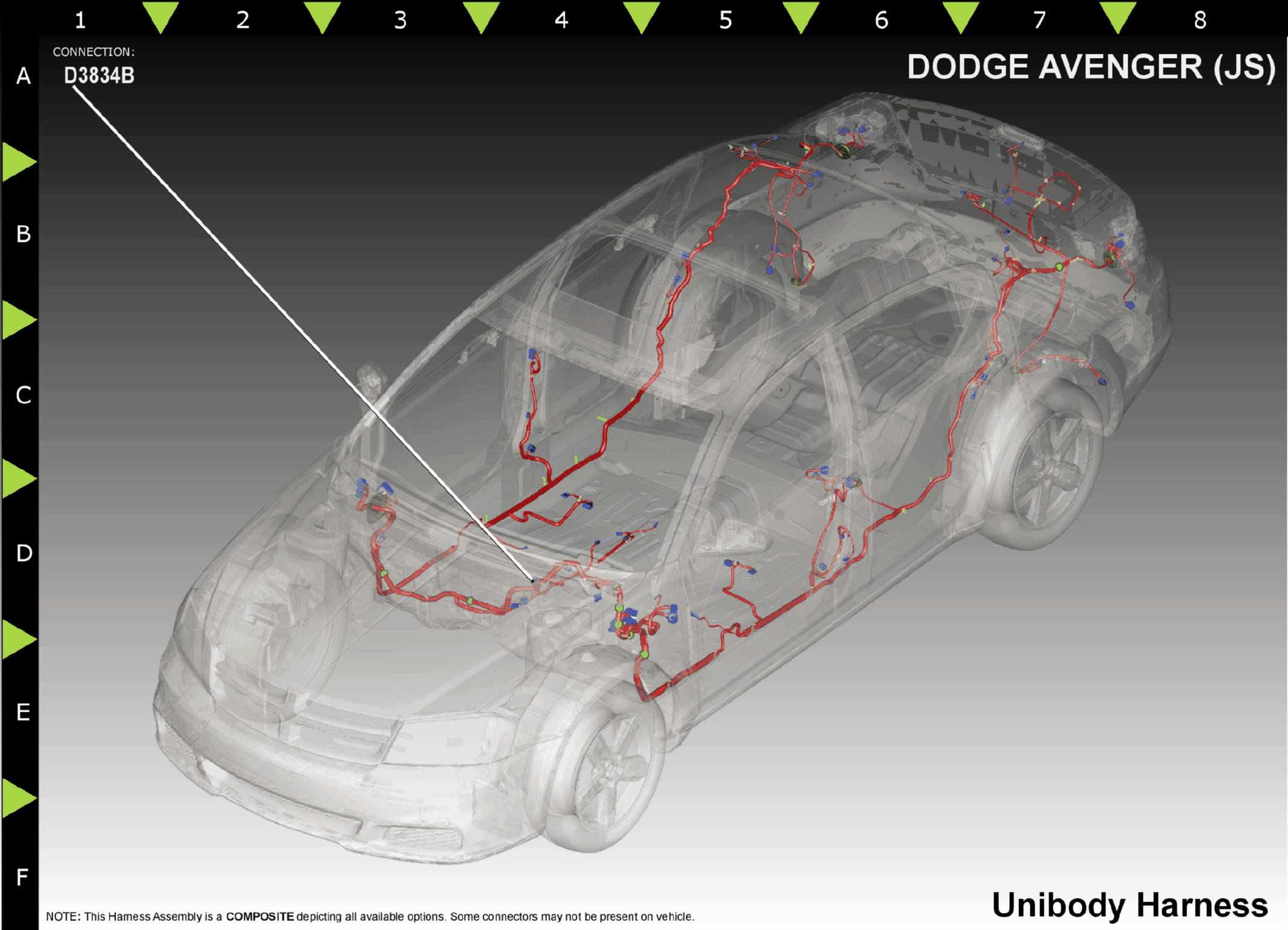

Fig 2: Module-Occupant Restraint Controller C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

GY/LG

RIGHT SEAT THORAX SQUIB 1 LINE 1

N/A

VT/LB

RIGHT SEAT THORAX SQUIB 1 LINE 2

N/A

LEFT SEAT THORAX SQUIB 1 LINE 2

N/A

LG/GY

LEFT SEAT THORAX SQUIB 1 LINE 1

N/A

LB/OR

LEFT CURTAIN SQUIB 1 LINE 1

N/A

LB/WT

LEFT CURTAIN SQUIB 1 LINE 2

N/A

WT/LB

RIGHT CURTAIN SQUIB 1 LINE 2

N/A

OR/LB

RIGHT CURTAIN SQUIB 1 LINE 1

N/A

R506

LB/DG

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R504

LB/YL

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R503

LG/YL

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R505

LG/DG

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R677

PK/YL

PASSENGER ACTIVE HEAD RESTRAINT SIGNAL

N/A

R676

PK/WT

DRIVER ACTIVE HEAD RESTRAINT SIGNAL

N/A

Z937

GROUND

N/A

F200

PK/LB

FUSED IGNITION SWITCH OUTPUT (RUN-START)

N/A

F100

PK/VT

FUSED IGNITION RUN CONTROL OUTPUT

N/A

R262

WT/LB

PASSENGER SEAT POSITION SENSOR DATA

N/A

R264

VT/LB

PASSENGER SEAT POSITION SENSOR VOLTAGE

N/A

R58

LB/GY

PASSENGER SEAT BELT SWITCH SENSE

N/A

R60

LB/TN

PASS SEAT BELT BUCKLE SWITCH SENSE

N/A

R14

TN/LG

RIGHT SIDE IMPACT SENSOR 1 SIGNAL

N/A

R16

BR/LG

RIGHT SIDE IMPACT SENSOR 1 GROUND

N/A

R15

LG/BR

LEFT SIDE IMPACT SENSOR 1 GROUND

N/A

R13

LG/TN

LEFT SIDE IMPACT SENSOR 1 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
