B1B8F-Driver Seat Track Position Sensor Circuit Open: Notes

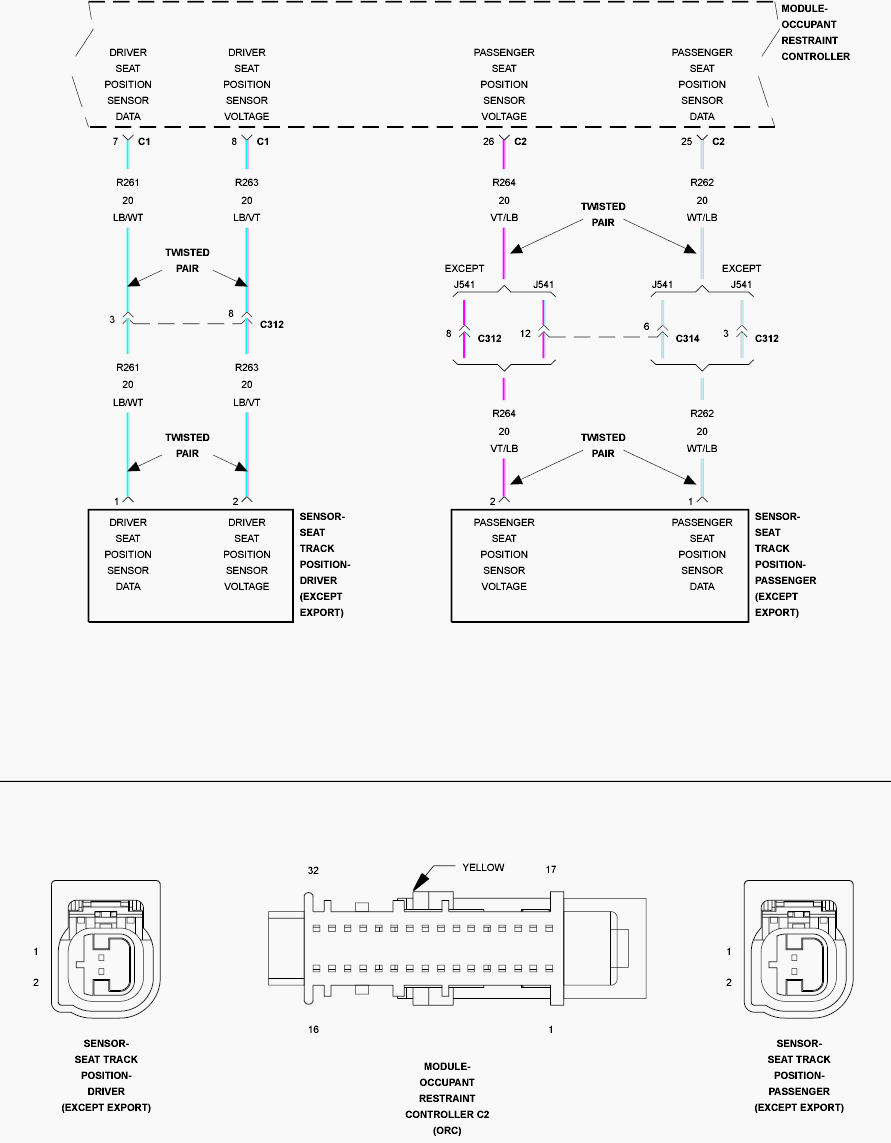

Fig 1: Seat Position Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
