Diagnostic Test

CHECK TO SEE IF DTC P0716 IS CURRENT
1. Start the engine.
2. Place the shift lever in park.
3. With the scan tool, read the Input Speed Sensor RPM.
  Is the Input Speed Sensor reading below 400 RPM?

  Yes
  - Go To 2.
  No
  - Go To 8.
CHECK THE PCM AND WIRING WITH THE TRANSMISSION SIMULATOR
1. Turn the ignition off to the lock position.
2. Remove the Ignition Switch Feed fuse from the TIPM.
  CAUTION:
  Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.

  WARNING:
  The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.
3. Install the Transmission Simulator (special tool #8333A, Simulator, Transmission) and the Electronic Transmission Adapter kit.
4. Ignition on, engine not running.
5. With the Transmission Simulator, set the "Input/Output Speed" switch to "ON" and the rotary switch to the "3000/1250" position.
6. With the scan tool, read the Input and Output RPM.
  Does the Input speed read 3000 RPM and the Output speed read 1250 RPM ± 50 RPM?

  Yes
  - Replace the Input Speed Sensor in accordance with the Service Information.
  - Perform the 62TE TRANSMISSION VERIFICATION TEST. Refer to 62TE TRANSMISSION VERIFICATION TEST .
  No
  - Go To 3.
CHECK THE (T52) INPUT SPEED SIGNAL CIRCUIT FOR AN OPEN

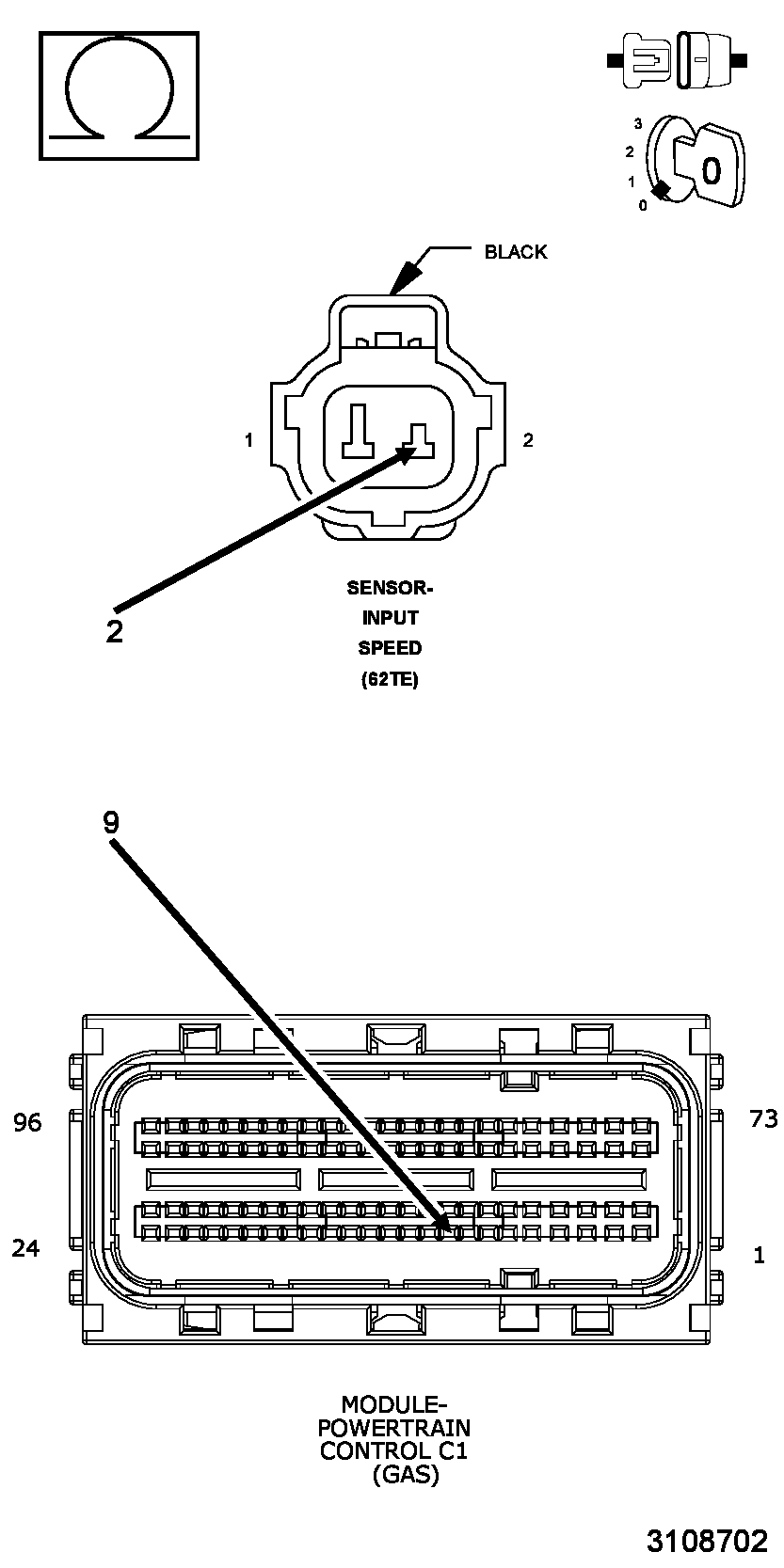

Fig 1: Checking Input Speed Signal Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off to the lock position.
2. Disconnect the PCM C1 harness connector.
3. Disconnect the Input Speed Sensor harness connector.
4. Measure the resistance of the (T52) Input Speed Signal circuit between the appropriate terminal of the PCM C1 harness and the Input Speed Sensor harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T52) Input Speed Signal circuit for an open.
  - Perform the 62TE TRANSMISSION VERIFICATION TEST. Refer to 62TE TRANSMISSION VERIFICATION TEST .
  No
  - Go To 4.
CHECK THE (T13) SPEED SENSOR GROUND CIRCUIT FOR AN OPEN

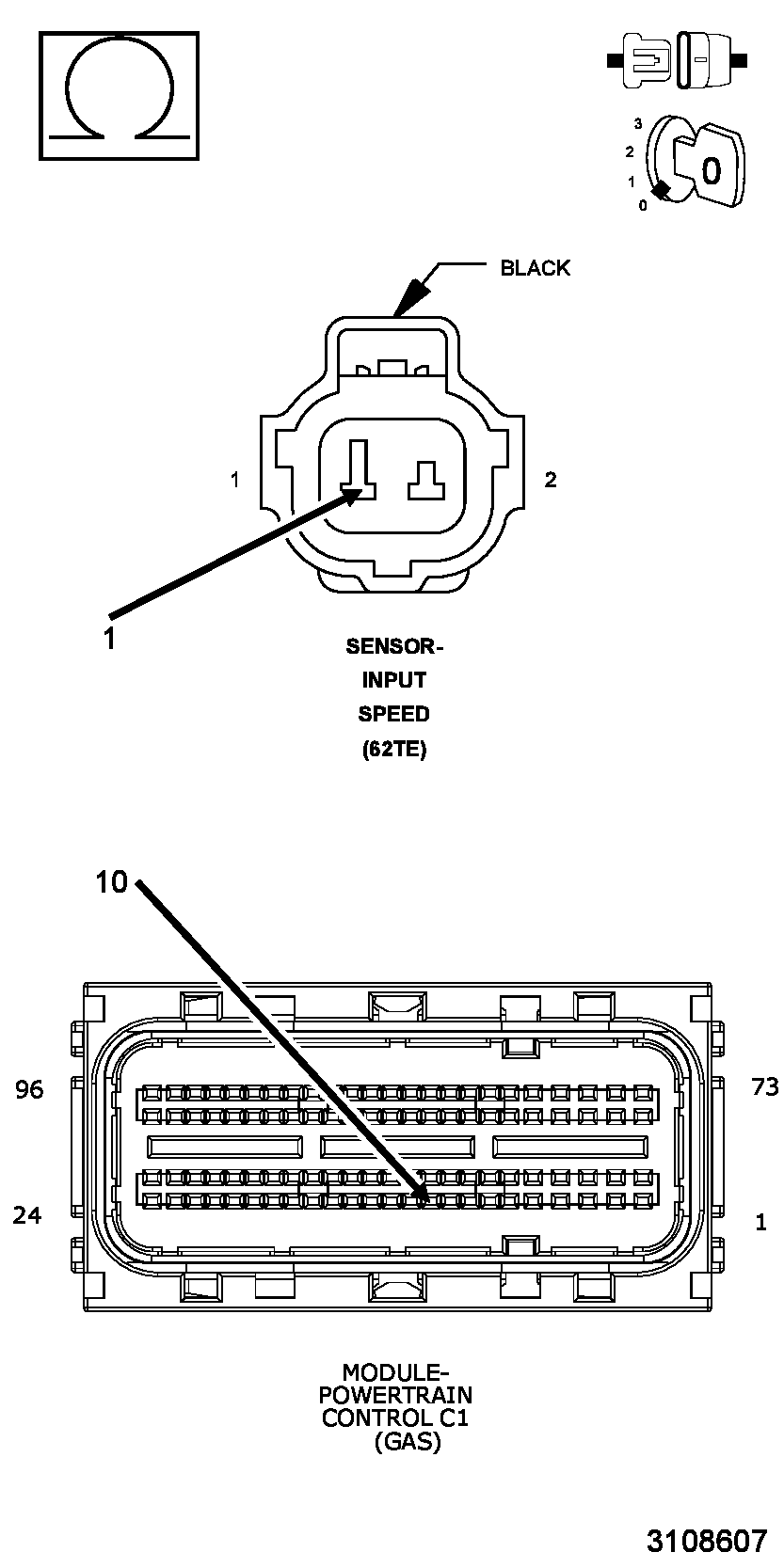

Fig 2: Checking Speed Sensor Ground Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (T13) Speed Sensor Ground circuit between the appropriate terminal of the PCM C1 harness connector and the Input Speed Sensor harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T13) Speed Sensor Ground circuit for an open.
  - Perform the 62TE TRANSMISSION VERIFICATION TEST. Refer to 62TE TRANSMISSION VERIFICATION TEST .
  No
  - Go To 5.
CHECK THE (T52) INPUT SPEED SIGNAL CIRCUIT FOR A SHORT TO GROUND

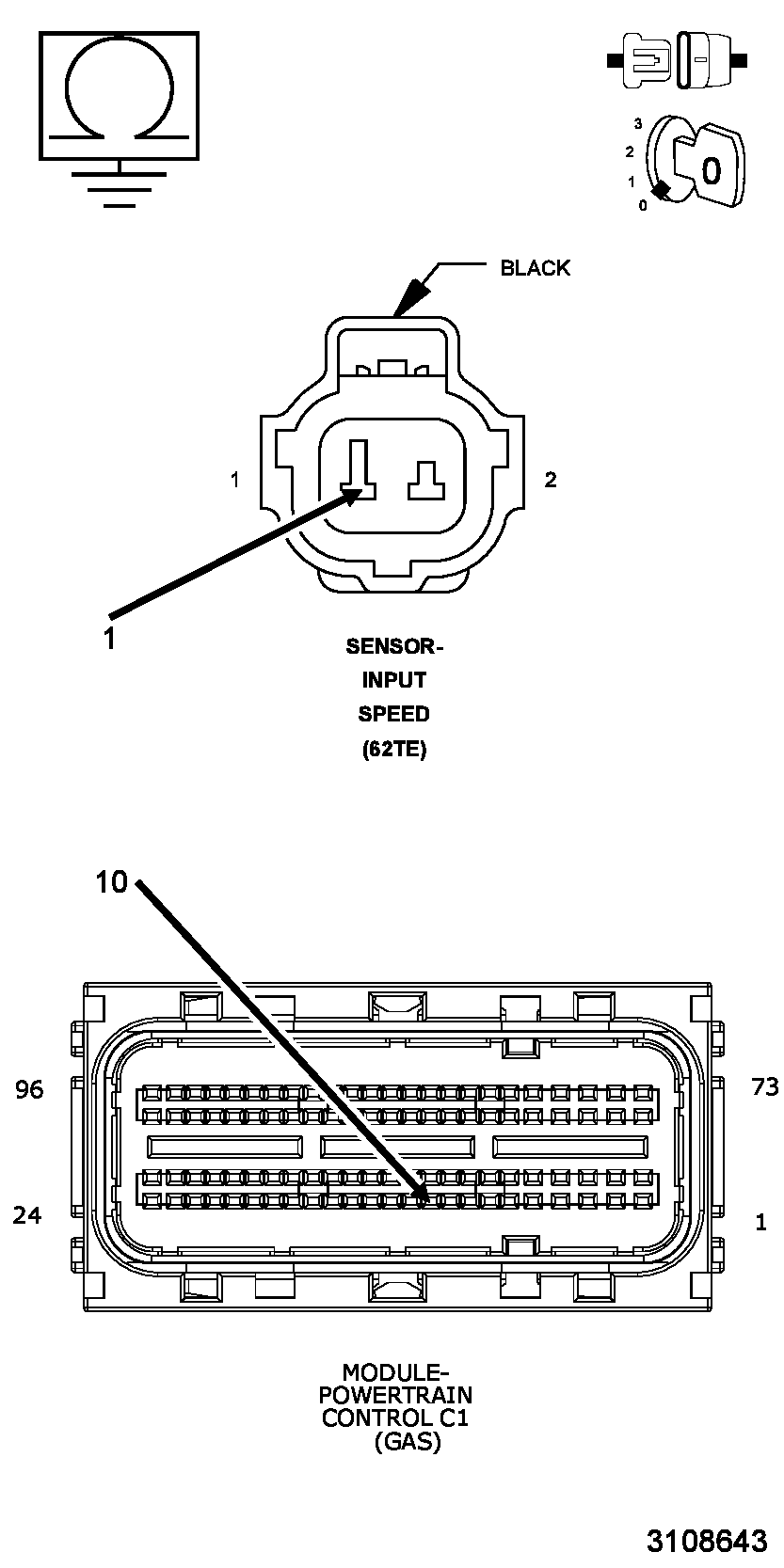

Fig 3: Checking Input Speed Signal Circuit For A Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between ground and the (T52) Input Speed Signal circuit.
  Is the resistance Below 5.0 Ohms?

  Yes
  - Repair the (T52) Input Speed Signal circuit for a short to ground.
  - Perform the 62TE TRANSMISSION VERIFICATION TEST. Refer to 62TE TRANSMISSION VERIFICATION TEST .
  No
  - Go To 6.
CHECK THE (T52) INPUT SPEED SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

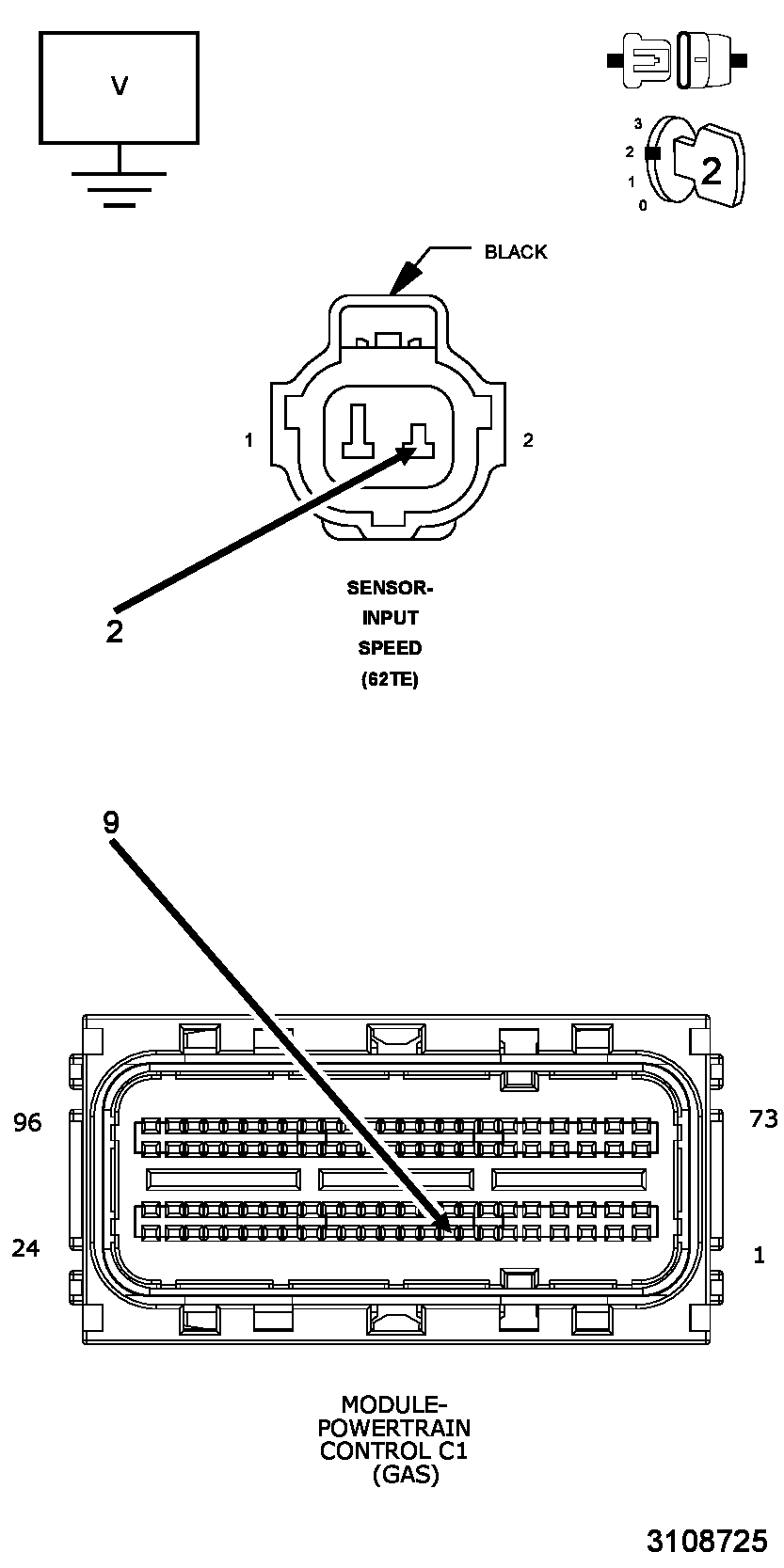

Fig 4: Checking Input Speed Signal Circuit For A Short To Voltage
Courtesy of CHRYSLER GROUP, LLC
1. Disconnect the Output Speed Sensor harness connector.
2. Ignition on, engine not running.
3. With the scan tool in the TIPM, actuate the Transmission.
4. Measure the voltage of the (T52) Input Speed Signal circuit.
  Is the voltage above 0.5 of a volt?

  Yes
  - Repair the (T52) Input Speed Signal circuit for a short to voltage.
  - Perform the 62TE TRANSMISSION VERIFICATION TEST. Refer to 62TE TRANSMISSION VERIFICATION TEST .
  No
  - Go To 7.
CHECK THE (T13) SPEED SENSOR GROUND CIRCUIT FOR A SHORT TO VOLTAGE

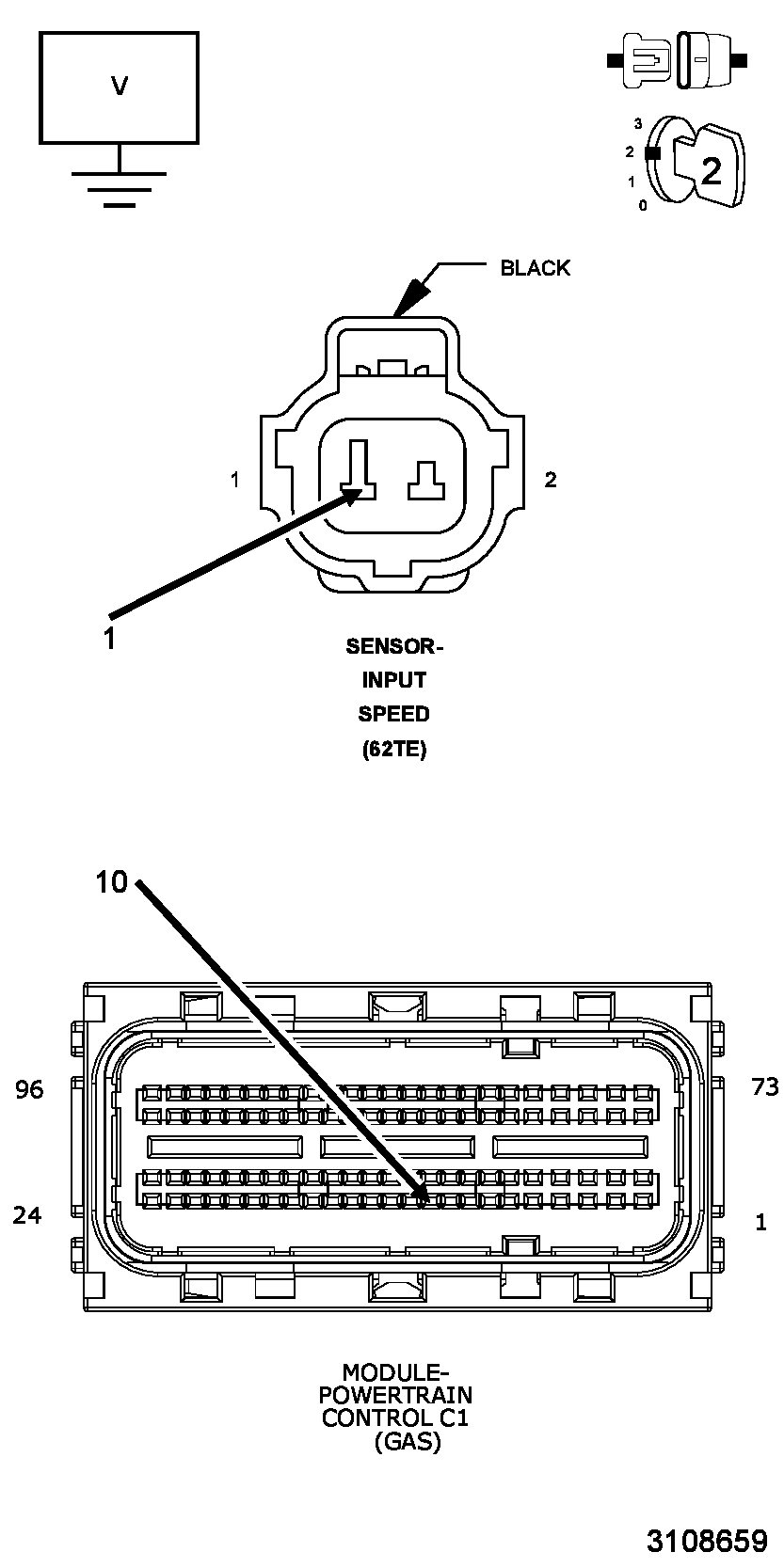

Fig 5: Checking Speed Sensor Ground Circuit For A Short To Voltage
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The jumper wire must still be connected.
1. Measure the voltage of the (T13) Speed Sensor Ground circuit.
  Is the voltage above 0.5 of a volt?

  Yes
  - Repair the (T13) Speed Sensor Ground circuit for a short to voltage.
  - Perform the 62TE TRANSMISSION VERIFICATION TEST. Refer to 62TE TRANSMISSION VERIFICATION TEST .
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for Service Information Tune-ups or Service Bulletins for any possible causes that may apply. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform the 62TE TRANSMISSION VERIFICATION TEST. Refer to 62TE TRANSMISSION VERIFICATION TEST .
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set the DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wiring and connectors while checking for shorted and open circuits.
4. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.
5. Check for Service Information Tune-ups or Service Bulletins for any possible causes that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the 62TE TRANSMISSION VERIFICATION TEST. Refer to 62TE TRANSMISSION VERIFICATION TEST .
  No
  - Test Complete.
