Adjuster, Seat Belt Turning Loop: Installation: Installation

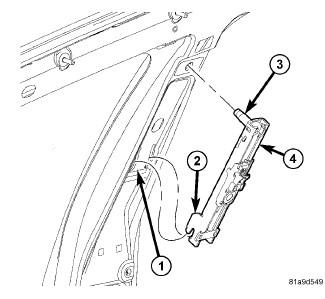

Fig 1: Removing/Installing Front Seat Belt Height Adjuster

Courtesy of CHRYSLER GROUP, LLC

1. Place seat belt height adjuster (4) into position.
2. Slide the lower hook (2) down into the B-pillar opening (1).
3. Install bolt (3) attaching height adjuster (4) to B-pillar. Tighten bolt to 59 N.m (43.5 ft. lbs.).

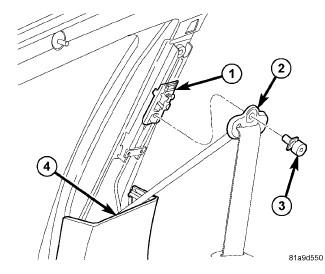

   Fig 2: Removing/Installing Front Seat Belt Turn Loop

   Courtesy of CHRYSLER GROUP, LLC
4. Install the bolt (3) attaching the turning loop (2) to the height adjuster (1). Tighten bolt to 34 N.m (25 ft. lbs.).
5. Install B-pillar trim panel (4). Refer to PANEL, B-PILLAR TRIM, INSTALLATION .
