Module, Steering Column Control: Removal: Removal: SCCM

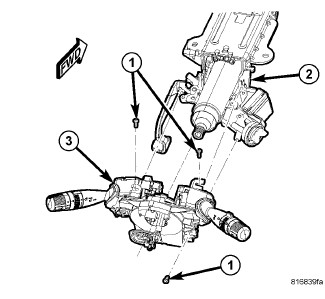

Fig 1: Steering Column Control Module Mounting

Courtesy of CHRYSLER GROUP, LLC

1. Place the front road wheels in the STRAIGHT-AHEAD position.
2. Disconnect and isolate the negative battery cable.
3. Remove steering wheel. Refer to WHEEL, STEERING, REMOVAL .
4. Remove upper and lower steering column shrouds to gain access to the Steering Column Control Module (SCCM) (3). Refer to SHROUD, STEERING COLUMN, LOWER, REMOVAL  and SHROUD, STEERING COLUMN, UPPER, REMOVAL .
5. Lock the clockspring rotor in the center position as follows: Insert a pin through the hole in the rotor at the 10 o'clock position.
6. Remove the three screws (1) to the SCCM.

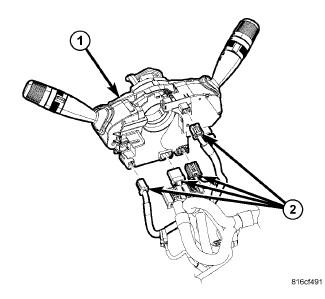

   Fig 2: Steering Column Control Module Connectors

   Courtesy of CHRYSLER GROUP, LLC
7. Disconnect the electrical connectors (2) between the SCCM (1) and the instrument panel wiring harness at the base of the SCCM and remove from column.
