B1883-Power Liftgate Position Sensor 1 Circuit Performance: Notes

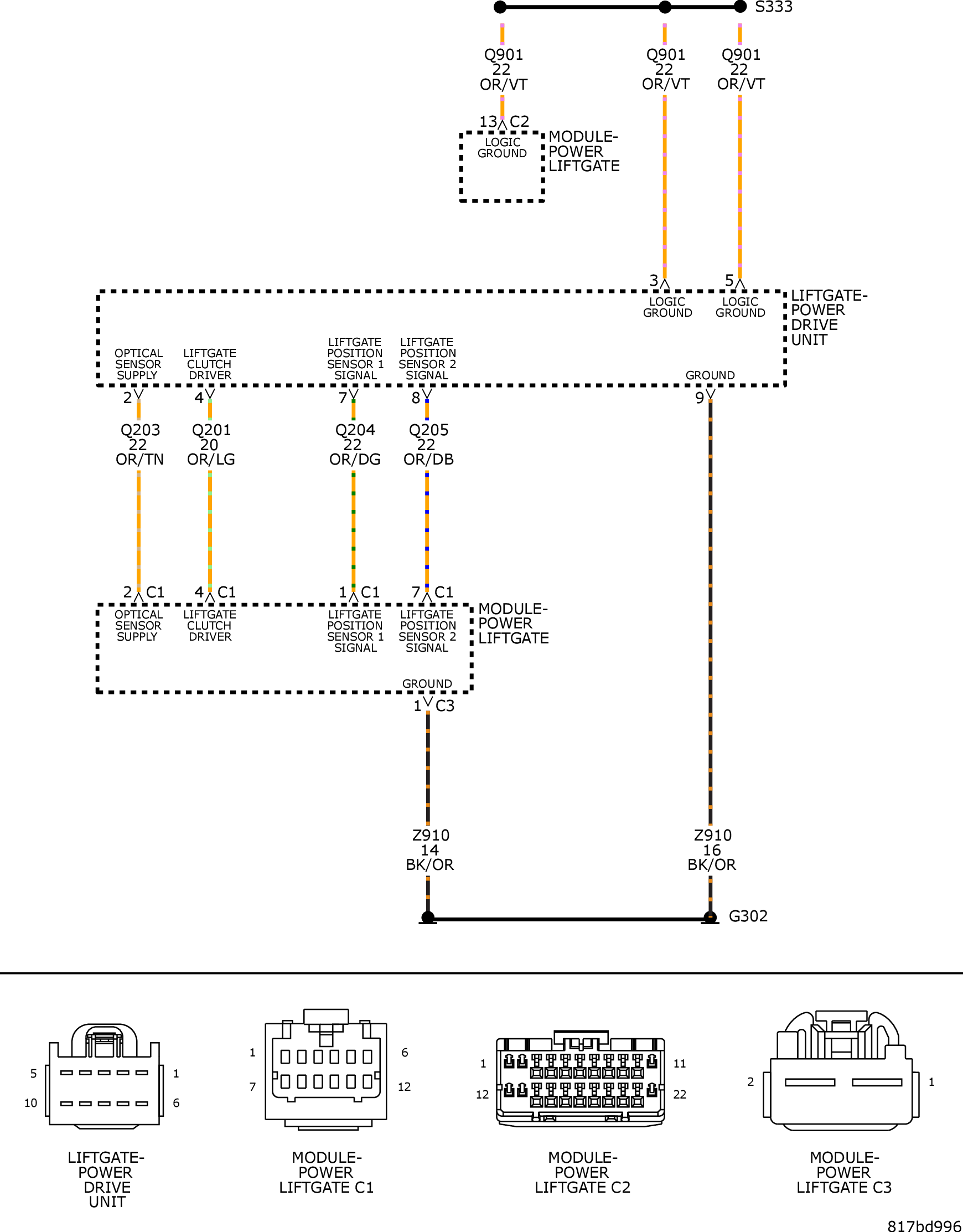

Fig 1: Power Liftgate Position Sensor 1 Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
