Module, Powertrain Control: Installation: Diesel

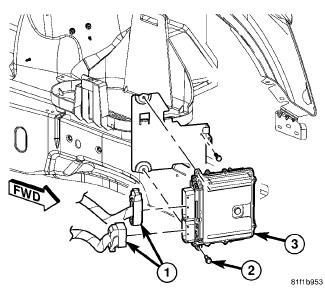

Fig 1: Removing/Installing Engine Control Module (ECM)

Courtesy of CHRYSLER GROUP, LLC

1. Install the Powertrain Control Module (PCM) (3). Tighten the bolts (2) to 5 N.m (44 in. lbs.).
2. Connect the PCM wire harness connector (1).
3. Connect the negative battery cable.
4. Using scan tool, program the all necessary information into the PCM. Refer to MODULE, POWERTRAIN CONTROL, STANDARD PROCEDURE .
