Module, Powertrain Control: Installation: Gas

Fig 1: Three Bolts
GC0153923Courtesy of CHRYSLER GROUP, LLC
  1. Install the powertrain control module (PCM) (1) with three bolts (2) tightened to 4.5 N.m (40 in. lbs.).
    Fig 2: Electrical Connectors
    GC0153922Courtesy of CHRYSLER GROUP, LLC
  2. Connect and lock the electrical connectors (1) to the PCM.

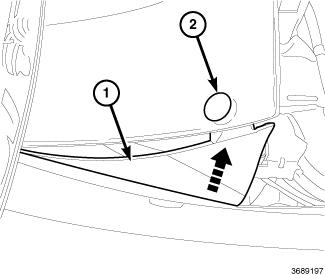

    Fig 3: PCM Access Cover & Push Pin
    GC0153924Courtesy of CHRYSLER GROUP, LLC
  3. Reposition the PCM access cover (1) and install the push pin (2).
  4. Lower the vehicle.
  5. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
    NOTE:

    If a new PCM is installed, it must be programed with the original Vehicle Identification Number (VIN) and mileage. If this is not done, a Diagnostic Trouble Code (DTC) may set.

    NOTE:

    If a new PCM is installed, refer to PCM/TCM PROGRAMMING . .

  6. If a new PCM is being installed, use a scan tool and program the new PCM with the original VIN and vehicle mileage.
