Module, Powertrain Control: Removal: Gas

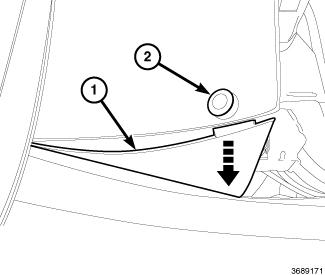

Fig 1: Push Pin & PCM Access Cover
GC0153921Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the push pin (2) and reposition the PCM access cover (1).

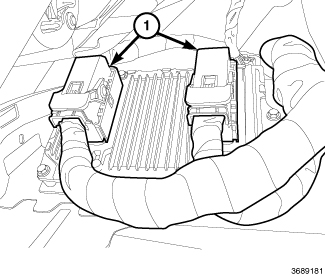

    Fig 2: Electrical Connectors
    GC0153922Courtesy of CHRYSLER GROUP, LLC
  4. Unlock and disconnect the electrical connectors (1) from the powertrain control module (PCM).

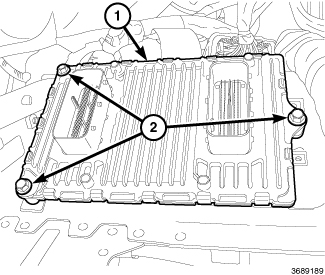

    Fig 3: Three Bolts
    GC0153923Courtesy of CHRYSLER GROUP, LLC
  5. Remove the three bolts (2) and the PCM (1).
