Diagnostic Test

  1. TEST FOR INTERMITTENT CONDITION
    1. Turn the ignition on.
    2. With the scan tool, record and erase DTCs.
    3. Turn the ignition off and remove the key from the ignition.
    4. Close all doors and arm the VTSS and wait one minute.
    5. Disarm the VTSS turn the ignition on and wait one minute.
    6. With the scan tool, read DTCs.

      Does the scan tool display this DTC as active?

      Yes

      • Go To  2.

      No

      • The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
      • Refer to STANDARD PROCEDURE and perform the BODY VERIFICATION TEST.

  2. CHECK THE (G460) INTRUSION RECEIVER SENSOR SIGNAL CIRCUIT VOLTAGE

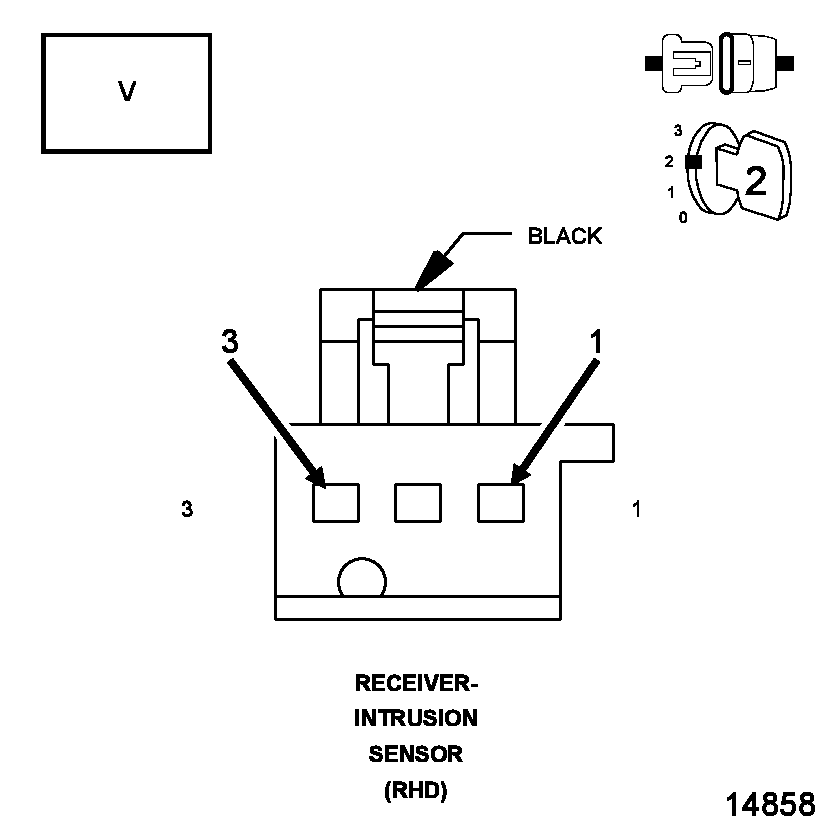

    Fig 1: Checking Intrusion Receiver Sensor Signal Circuit Voltage
    GC0096979Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the Intrusion Sensor Receiver connector.
      NOTE:

      Check connectors - Clean/repair as necessary.

    2. Turn the ignition on.
    3. With the scan tool actuate the Intrusion Sensor Receiver.
    4. Measure the voltage between (G460) Intrusion Receiver Sensor Signal circuit and (G946) Sensor Ground circuit.

      Is the voltage above 10.0 volts

      Yes

      • Go To  3.

      No

      • Go To  4.

  3. CHECK THE INTRUSION SENSOR RECEIVER

    1. Turn the ignition off.
    2. Install a known good Intrusion Sensor Receiver.
    3. Turn the ignition on.
    4. With the scan tool erase DTCs.
    5. Turn the ignition off and remove the key from the ignition.
    6. Close all doors and arm the VTSS and wait one minute.
    7. Disarm the VTSS turn the ignition on and wait one minute.
    8. With the scan tool, read DTCs.

      Does the scan tool display this DTC as active?

      Yes

      • Replace the Intrusion Transceiver Module in accordance with the Service Information.
      • Refer to STANDARD PROCEDURE and perform the BODY VERIFICATION TEST.

      No

      • Replace the original Intrusion Sensor Receiver.
      • Refer to STANDARD PROCEDURE and perform the BODY VERIFICATION TEST.

  4. CHECK THE (G460) INTRUSION RECEIVER SENSOR SIGNAL WIRE

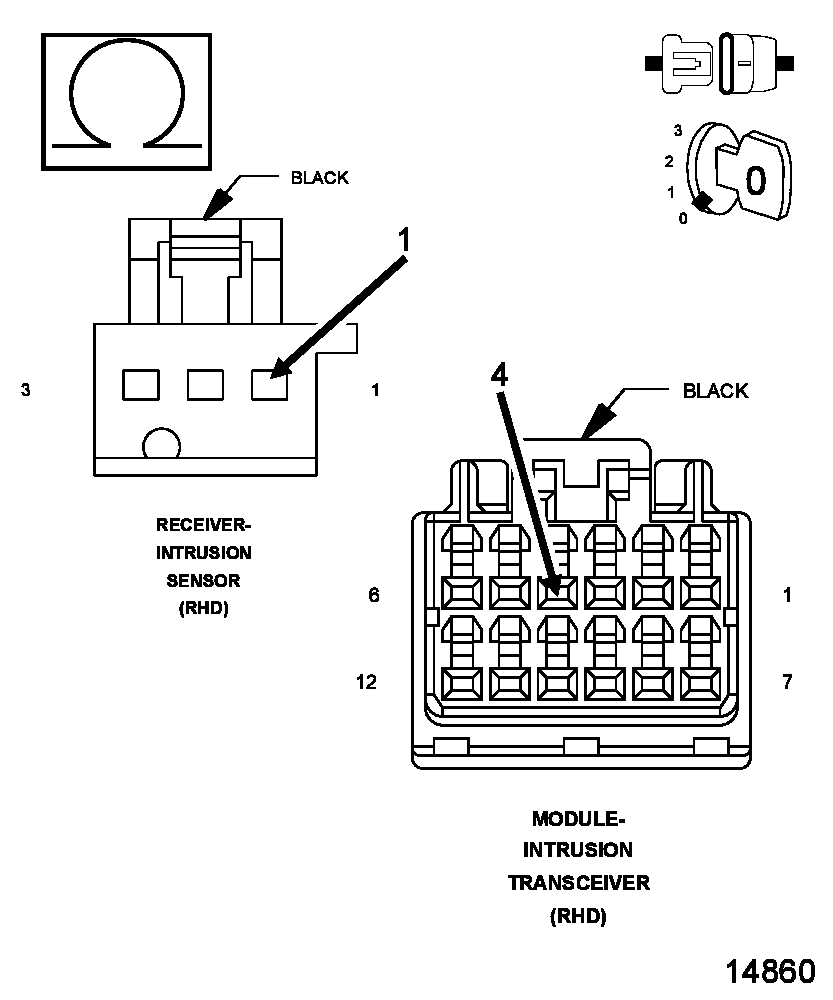

    Fig 2: Checking Intrusion Receiver Sensor Signal Circuit For Open
    GC0096980Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the Intrusion Transceiver Module connector.
    3. Measure the resistance of the (G460) Intrusion Receiver Sensor Signal circuit between the Intrusion Sensor Receiver connector and the Intrusion Transceiver Module connector.

      Is the resistance below 5.0 ohms?

      Yes

      • Repair the (G460) Intrusion Receiver Sensor Signal circuit for an open.
      • Refer to STANDARD PROCEDURE and perform the BODY VERIFICATION TEST.

      No

      • Go To  5.

  5. CHECK THE (G946) SENSOR GROUND WIRE FOR AN OPEN

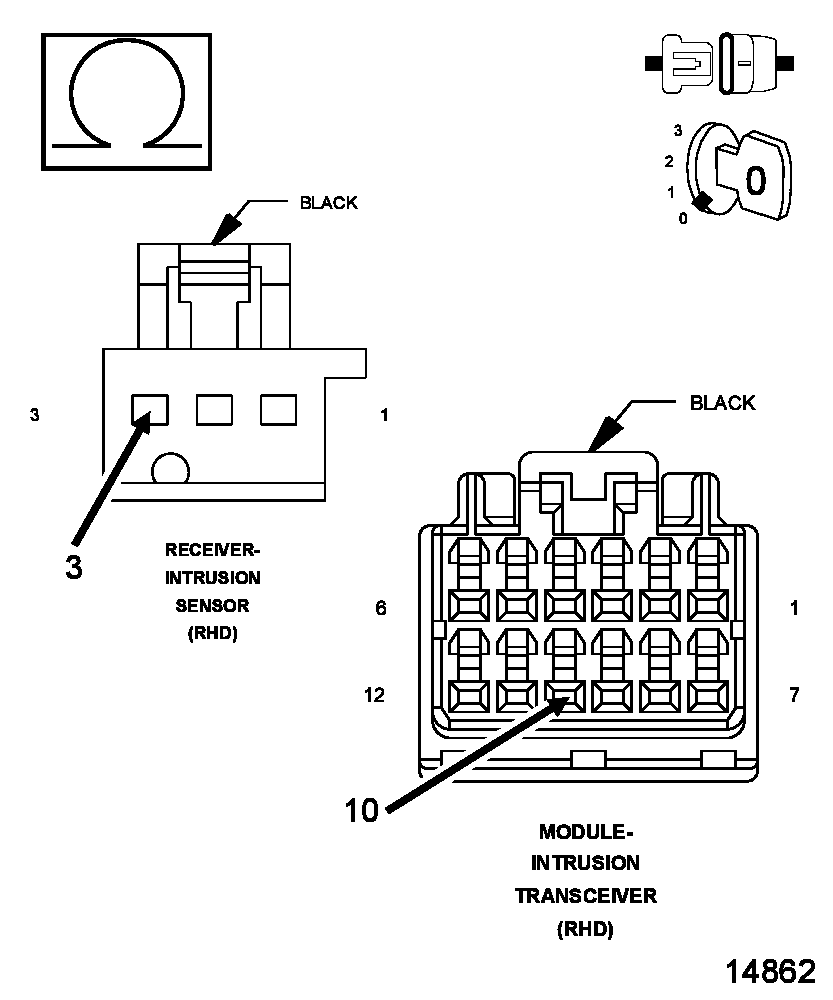

    Fig 3: Checking Sensor Ground Circuit For Open
    GC0096981Courtesy of CHRYSLER GROUP, LLC
    1. Ensure Ignition is off.
    2. Measure the resistance of the (G946) Sensor Ground circuit from the Intrusion Sensor Receiver connector to the Intrusion Transceiver Module connector.

      Is the resistance below 5.0 ohms?

      Yes

      • Replace the Intrusion Transceiver Module in accordance with the Service Information.
      • Refer to STANDARD PROCEDURE and perform the BODY VERIFICATION TEST.

      No

      • Repair the (G946) Sensor Ground circuit for an open.
      • Refer to STANDARD PROCEDURE and perform the BODY VERIFICATION TEST.
