B196C-Power Liftgate Close Direction Excessive Position Sensor Counts: Notes

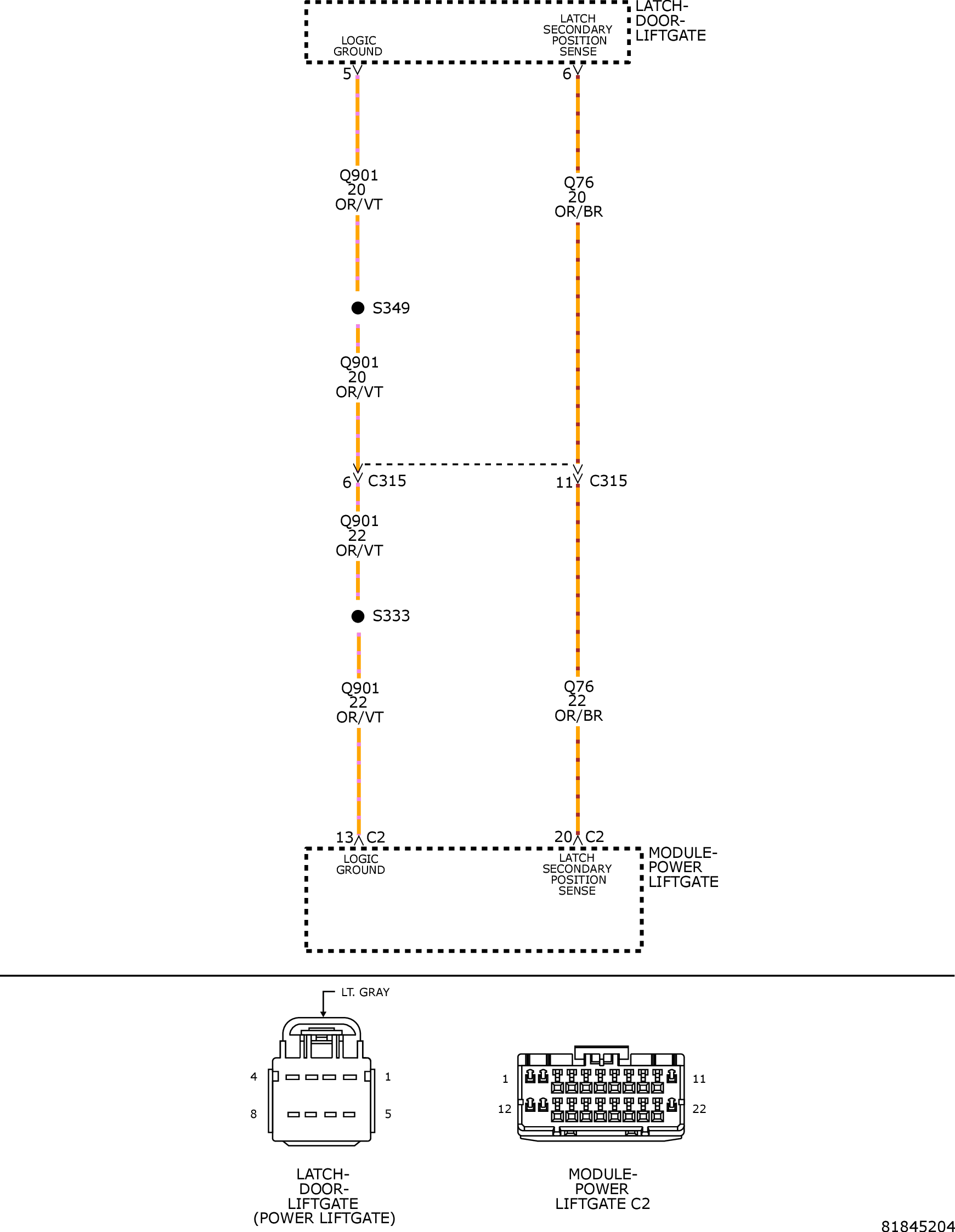

Fig 1: Power Liftgate Position Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
