B1E25-3RD Row Seat Mode Select Switch Circuit High: Notes

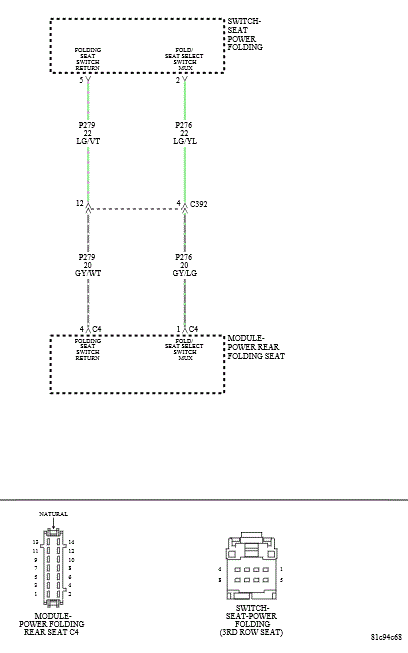

Fig 1: 3Rd Row Seat Mode Select Switch Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
