Fan Module-Radiator Cooling (3.6L) (D3022A)

Harness-Family: Front_End_Lighting

Color: DARK GRAY

Gender: FEMALE

Part Number: 7283-5928-10

Part Description: 6.3 YESC 2P CONN ASSY INSL

Connector No: D3022A

Option: 3.6L

Repair Kit Part Number: 68045336AA

Cavity Count: 2

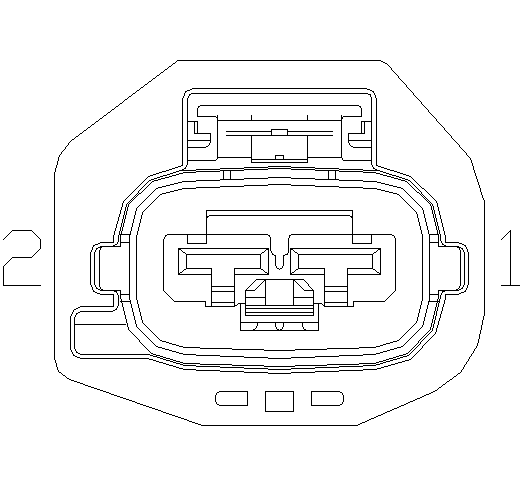

Fig 1: Fan Module-Radiator Cooling Connector End View (3.6L)

Courtesy of CHRYSLER

Fig 2: Fan Module-Radiator Cooling Component Location (3.6L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N173

DB/VT

RAD FAN CONTROL

N/A

Z904

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
