Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 0-1534724-1

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

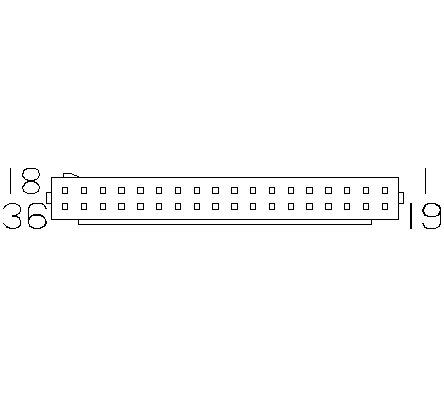

Fig 1: Module-Occupant Restraint Controller C1 Connector End View
GCWD1082027Courtesy of CHRYSLER

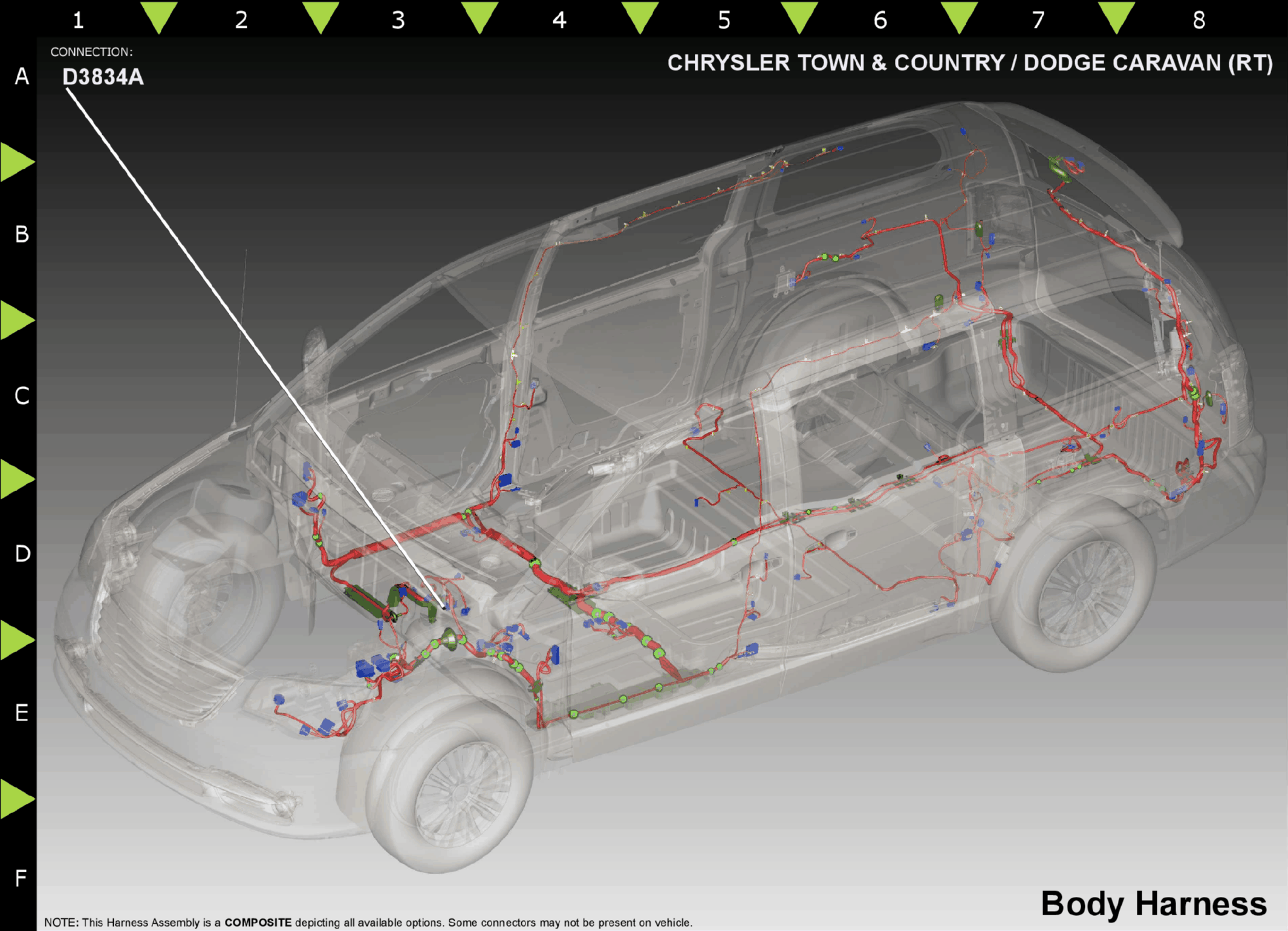

Fig 2: Module-Occupant Restraint Controller C1 Component Location
GCWD1191597Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R81 LB/WT 20 LEFT FRONT IMPACT SENSOR GROUND N/A
2 R82 WT/LB 20 RIGHT FRONT IMPACT SENSOR GROUND N/A
3 R20 WT/LG 20 RIGHT SIDE IMPACT SENSOR 2 GROUND N/A
4 R19 LG/WT 20 LEFT SIDE IMPACT SENSOR 2 GROUND N/A
6 R284 LB/LG 20 PASSENGER SEAT OCCUPANT DETECTION RETURN N/A
7 R58 LB/GY 20 PASSENGER SEAT BELT SWITCH SENSE N/A
8 R150 LG/BR 20 LEFT SIDE IMPACT PRESSURE SENSOR GROUND N/A
9 R160 BR/LG 20 RIGHT SIDE IMPACT PRESSURE SENSOR GROUND N/A
10 R24 YL/LB 20 RIGHT SIDE IMPACT SENSOR 3 GROUND N/A
11 R23 LB/YL 20 LEFT SIDE IMPACT SENSOR 3 GROUND N/A
13 R264 VT/LB 20 PASSENGER SEAT POSITION SENSOR VOLTAGE N/A
15 R60 LB/TN 20 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
16 R261 LB/WT 20 DRIVER SEAT POSITION SENSOR DATA N/A
18 R262 WT/LB 20 PASSENGER SEAT POSITION SENSOR DATA N/A
19 R79 LB/VT 20 LEFT FRONT IMPACT SENSOR SIGNAL N/A
20 R80 VT/LB 20 RIGHT FRONT IMPACT SENSOR SIGNAL N/A
21 R18 LB 20 RIGHT SIDE IMPACT SENSOR 2 SIGNAL N/A
22 R17 LG 20 LEFT SIDE IMPACT SENSOR 2 SIGNAL N/A
24 R283 LB/DG 20 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
26 R130 LG/TN 20 LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
27 R140 TN/LG 20 RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
28 R22 WT/LB 20 RIGHT SIDE IMPACT SENSOR 3 SIGNAL N/A
29 R21 LB/WT 20 LEFT SIDE IMPACT SENSOR 3 SIGNAL N/A
30 R263 LB/VT 20 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
34 R131 LG/YL 20 LEFT SIDE IMPACT SENSOR 2 SIGNAL N/A
35 R151 LG/OR 20 LEFT SIDE IMPACT SENSOR 1 GROUND N/A
(1) Pins not listed are not used for this connector
