Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 0-1534721-1

Part Description: MQS SOCKET HOUSING

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 36

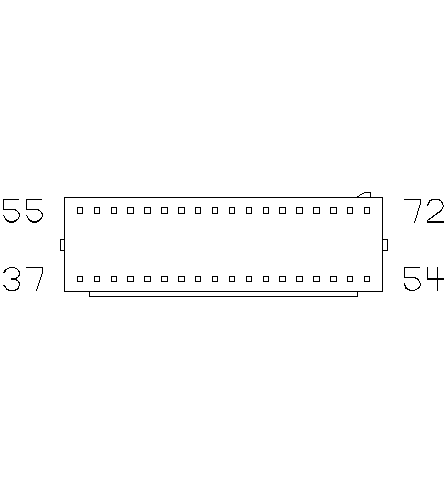

Fig 1: Module-Occupant Restraint Controller C2 Connector End View

Courtesy of CHRYSLER

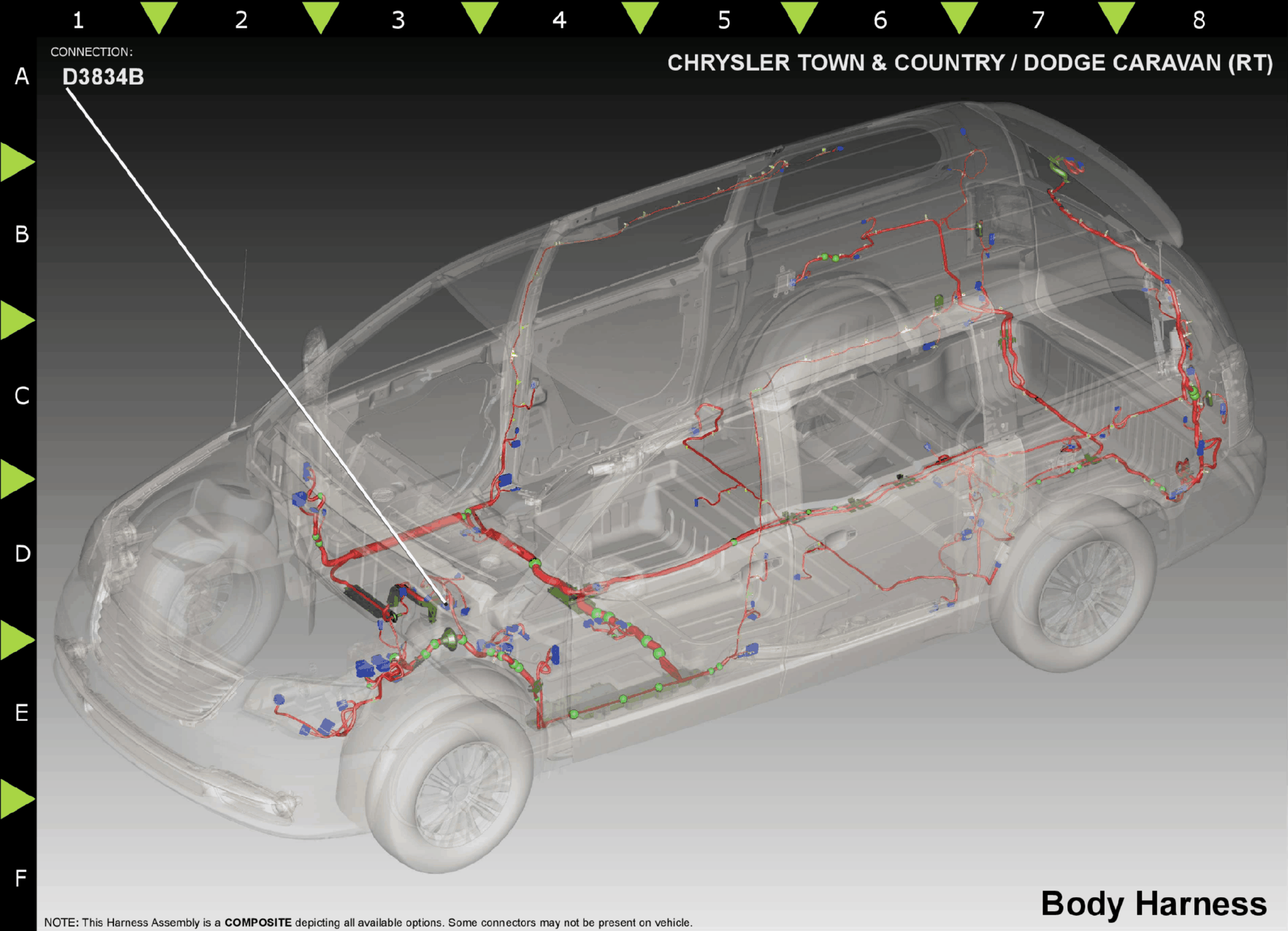

Fig 2: Module-Occupant Restraint Controller C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R505

LG/DG

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R503

LG/YL

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R54

LB/YL

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R56

LB/DG

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R506

LB/DG

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R504

LB/YL

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

LB/WT

LEFT CURTAIN SQUIB 1 LINE 2

N/A

LB/OR

LEFT CURTAIN SQUIB 1 LINE 1

N/A

LG/GY

LEFT SEAT THORAX SQUIB 1 LINE 1

N/A

LB/VT

LEFT SEAT THORAX SQUIB 1 LINE 2

N/A

R141

TN/DG

RIGHT SIDE IMPACT SENSOR 2 SIGNAL

N/A

R161

BR/DG

RIGHT SIDE IMPACT SENSOR 1 GROUND

N/A

GY/LG

RIGHT SEAT THORAX SQUIB 1 LINE 1

N/A

VT/LB

RIGHT SEAT THORAX SQUIB 1 LINE 2

N/A

R53

LG/YL

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R55

LG/DG

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

WT/LB

RIGHT CURTAIN SQUIB 1 LINE 2

N/A

OR/LB

RIGHT CURTAIN SQUIB 1 LINE 1

N/A

R676

PK/WT

DRIVER ACTIVE HEAD RESTRAINT SIGNAL

N/A

R677

PK/DB

PASSENGER ACTIVE HEAD RESTRAINT SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
