Module-Occupant Restraint Controller C4 (D3834D)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 0-1534726-1

Part Description: Not Available

Connector No: D3834D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 12

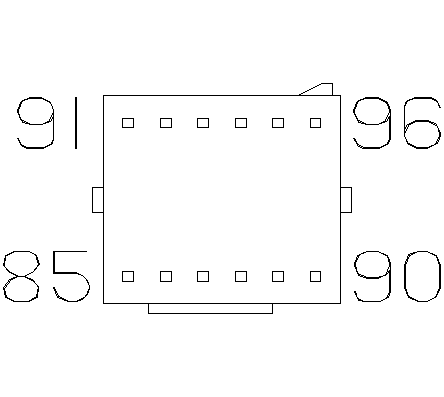

Fig 1: Module-Occupant Restraint Controller C4 Connector End View

Courtesy of CHRYSLER

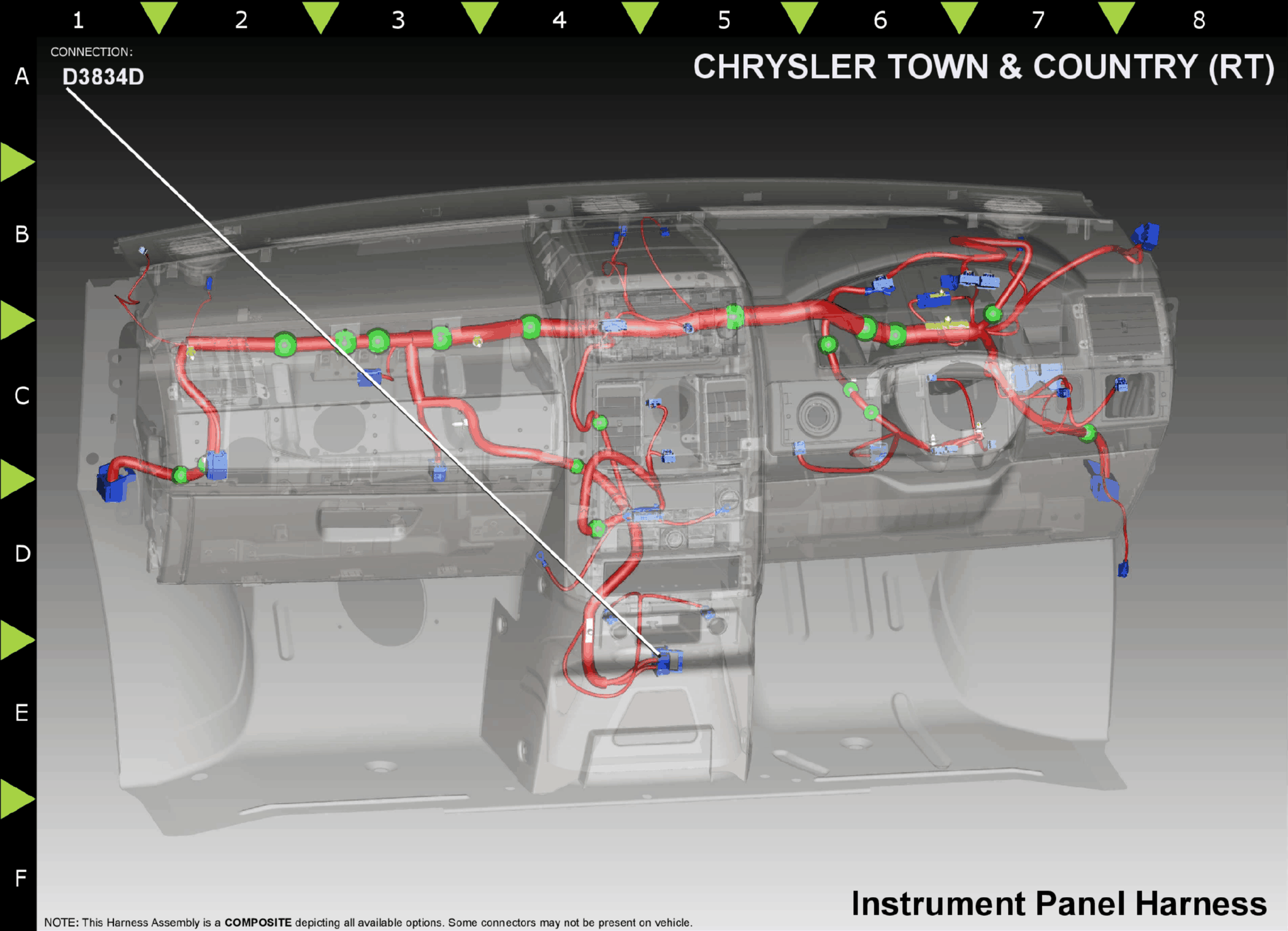

Fig 2: Module-Occupant Restraint Controller C4 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R45

LG/OR

DRIVER SQUIB 1 LINE 1

N/A

R43

LG/BR

DRIVER SQUIB 1 LINE 2

N/A

R42

LB/BR

PASSENGER SQUIB 1 LINE 2

N/A

R44

LB/OR

PASSENGER SQUIB 1 LINE 1

N/A

R64

LB/WT

PASSENGER SQUIB 2 LINE 1

N/A

R62

LB/VT

PASSENGER SQUIB 2 LINE 2

N/A

R61

LG/VT

DRIVER SQUIB 2 LINE 2

N/A

R63

LG/WT

DRIVER SQUIB 2 LINE 1

N/A

R11

LB/DB

DRIVER KNEE BLOCKER SQUIB LINE 1

N/A

LB/YL

DRIVER KNEE BLOCKER SQUIB LINE 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
