B212C-Ignition Run/Start Input Circuit Open: Notes

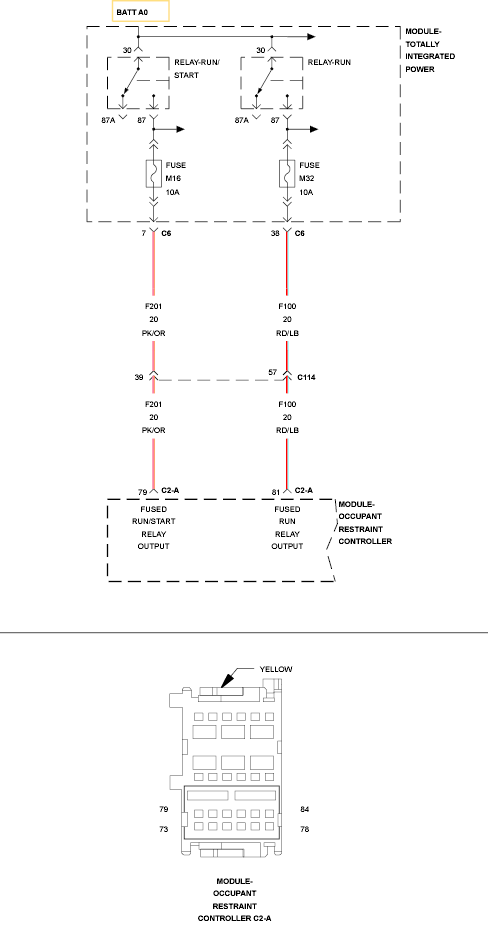

Fig 1: Occupant Restraint Controller (ORC) Module Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
