Module, Door, Power Sliding: Installation: Installation

WARNING: This page is about a different car, the 2011 Dodge Grand Caravan and 2011 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

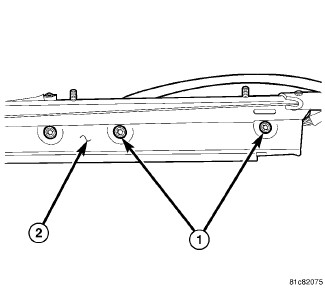

Fig 1: Power Sliding Door Control Module Retaining Screws

Courtesy of CHRYSLER LLC

NOTE:

Any time a power sliding door component is removed, replaced, door adjustment is performed or diagnostic trouble codes are addressed and erased, a learn cycle must be performed. The power sliding door learn cycle enables the power sliding door control module to learn or relearn critical information (travel limits, resistance to door travel, door position, etc.) which allows the system to perform properly and safely. for the appropriate procedure. Refer to STANDARD PROCEDURE .

Position the power sliding door control module onto the drive assembly (2) and install the retaining screws (1).

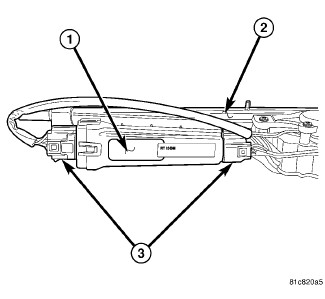

Fig 2: Power Sliding Door Control Module
Courtesy of CHRYSLER LLC
Connect the power sliding door control module (1) electrical connectors (3).
Install the power sliding door drive assembly. Refer to DRIVE ASSEMBLY, INSTALLATION .
Connect the battery negative cable.
Perform the power sliding door learn cycle. Refer to STANDARD PROCEDURE .
