Module, Door: Installation: Rear
WARNING: This page is about a different car, the 2011 Dodge Grand Caravan and 2011 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

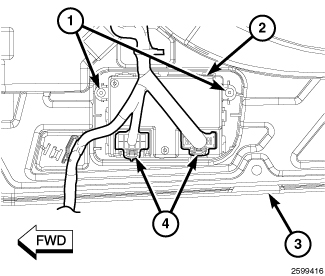

- Position the rear door control module (2) to the rear door hardware module carrier (3).
- Install and tighten the two screws (1) that secure the rear door control module to the carrier. Tighten the screws securely.
- Reconnect the electrical connectors (4) to each of the rear door control module connector receptacles.
- Reinstall the trim panel onto the inside of the sliding rear door. Refer to PANEL, DOOR TRIM, INSTALLATION .
- Reconnect the battery negative cable.
