Module, Fold Stow: Removal: Removal

WARNING: This page is about a different car, the 2011 Dodge Grand Caravan and 2011 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The third row fold and stow module is located in the 60 percent seat cushion pan. The following steps should be performed on the 60 percent seat only.

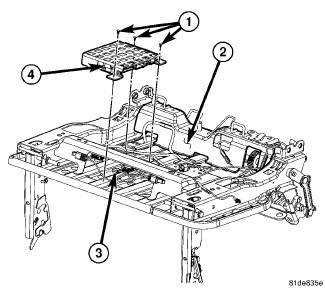

Fig 1: Seat Cushion Pan

Courtesy of CHRYSLER LLC

Remove the 60 percent third row power folding seat. Refer to SEATS, THIRD ROW, POWER FOLDING .
Remove the seat cushion and cover. Refer to COVER, SEAT CUSHION .
Remove the push-pin retainers (1) that secure the bracket (4) to the seat pan (2).
Disconnect the electrical connectors (3) from the fold and stow module.

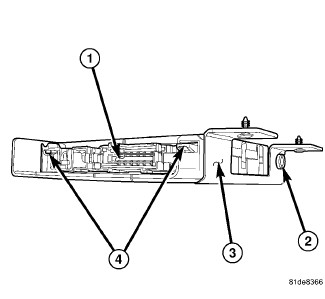

Fig 2: Third Row Power Folding Seat Module
Courtesy of CHRYSLER LLC
Disengage the two retaining tabs (4) that secure the fold and stow module (1) to the bracket (3).
Slide the fold and stow module (1) out of the bracket and disengage the two retaining pins (2).
