Right Side

RIGHT SIDE KNOCK SENSOR






NOTE: Coolant manifold removed for clarity.

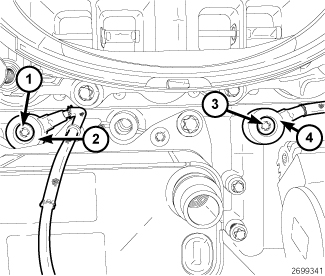

1. Install the right knock sensor (4). Tighten bolt (3) to 20 Nm (177 in. lbs.).

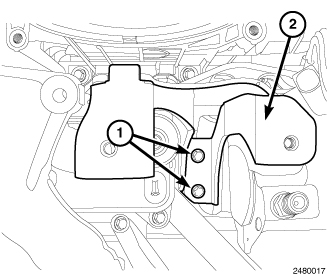

2. Install the mixing chamber support bracket (2). Tighten bolts (1) to 9 Nm (80 in. lbs.).
3. Install the mixing chamber Intake Manifold - Installation.
