Module, Steering Column Control: Removal: Removal: Disassembly

NOTE:

There is no need to disassemble the Steering Column Control Module (SCCM) if only removing the SCCM from the column.

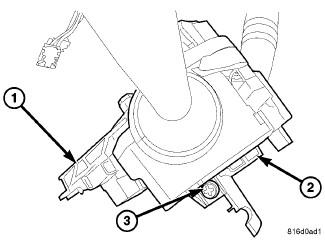

Fig 1: Identifying Left Stalk Retaining Screw

Courtesy of CHRYSLER GROUP, LLC

Remove the left multi-function switch stalk retaining screw (2).
Pull the left stalk out of the SCCM.

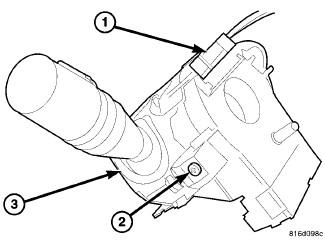

Fig 2: Left Stalk Elect. Conn.
Courtesy of CHRYSLER GROUP, LLC
Disconnect the left stalk electrical connector.
Separate the left switch from the SCCM.

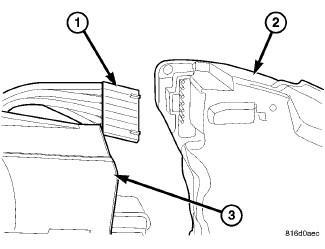

Fig 3: Identifying Right Multi-Function Switch Retaining Screw
Courtesy of CHRYSLER GROUP, LLC
Remove the one right multi-function switch retaining screw.
Pull right switch out of SCCM.

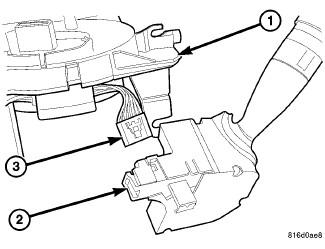

Fig 4: Identifying Jumper Wire Harness Connector, Right Multi-Function Switch & Clockspring
Courtesy of CHRYSLER GROUP, LLC
Disconnect the right switch electrical connector.
