Sensor, Transmission Range: Installation: Installation

Fig 1: Transmission Range Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install TRS into position (1).

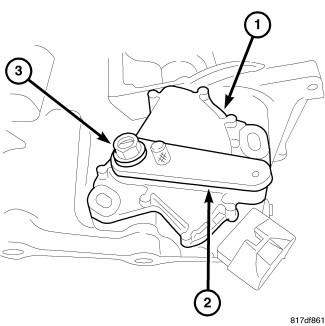

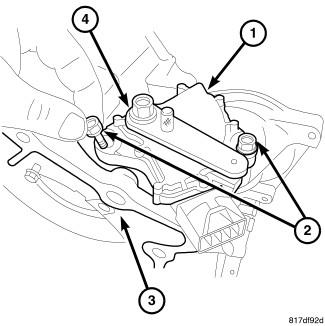

   Fig 2: TRS Adjustment Tool

   Courtesy of CHRYSLER GROUP, LLC
2. Put the manual shaft in the N position (3).
3. Install Alignment Tool (special tool #9876, Adjustment Tool) (2) and adjust the position of the TRS (1).

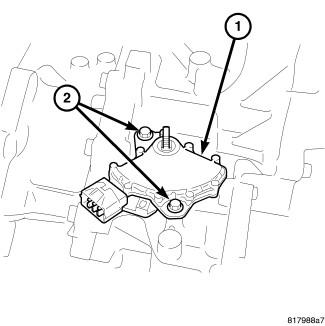

   Fig 3: Bolts AT TRS

   Courtesy of CHRYSLER GROUP, LLC
4. Install and tighten the mounting bolts of the TRS to 6 N.m (49 in. lbs.).

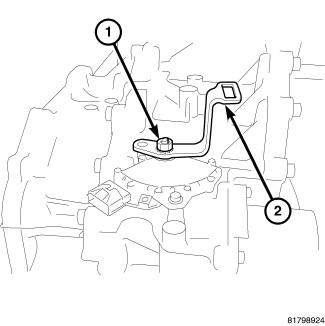

   Fig 4: Shift Lever

   Courtesy of CHRYSLER GROUP, LLC
5. Remove Alignment Tool (special tool #9876, Adjustment Tool) and Install the shift lever (2) onto the manual shaft (1).
6. Install and tighten the mounting nut to 17 N.m (150 in. lbs.).
