T355 Manual Transaxle (Service Information): Synchronizer: Assembly: Assembly

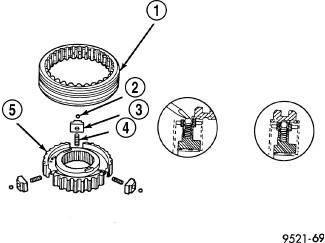

Fig 1: Synchronizer Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - SLEEVE

2 - BALL

3 - KEY

4 - SPRING

5 - HUB

1. Position synchronizer hub (5) onto a suitable holding fixture (input shaft). Refer to Fig 1. The synchronizer hubs (5) are directional. The hubs must be installed with the U  facing upward.
2. Install springs (4) into hub slot.

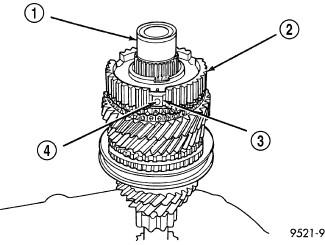

   Fig 2: Synchronizer Balls

   Courtesy of CHRYSLER GROUP, LLC

   1 - INPUT SHAFT

   2 - HUB

   3 - KEY

   4 - BALL

3. Insert key (3) into hub (2) and spring. Refer to Fig 2.
4. Apply petroleum jelly to the hole in the key. Insert balls (4) into each key.

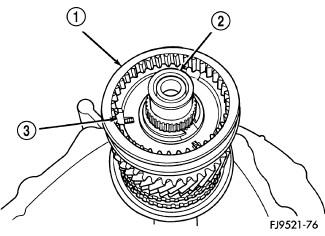

   Fig 3: Synchronizer Sleeve

   Courtesy of CHRYSLER GROUP, LLC

   1 - SLEEVE

   2 - INPUT SHAFT

   3 - KEY

5. Slide sleeve (1) over the hub and depress balls as you carefully slip the sleeve into position. Refer to Fig 3.

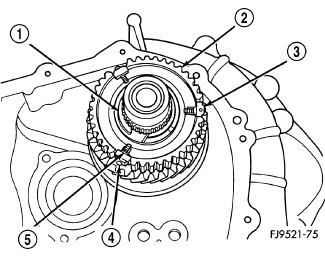

   Fig 4: Keys In Hub

   Courtesy of CHRYSLER GROUP, LLC

   1 - SNAP RING

   2 - CLUTCH

   3 - KEY

   4 - BALL

   5 - SPRING

6. Line up stop ring tang over the keys in the hub, install stop rings, center the keys (3) and balls (4) by pushing on both stop rings. Refer to Fig 4.
