Module, Totally Integrated Power (TIPM): Removal: Removal

The TIPM (TIPM) is serviced as a unit with the engine compartment wire harness. If any internal circuit of the TIPM or the TIPM housing is faulty or damaged, the entire TIPM and engine compartment wire harness unit must be replaced. Refer to appropriate Wiring Diagrams for more information on the locations of the affected connectors.

1. Open hood.
2. Disconnect and isolate the battery negative cable.
3. Disconnect each of the engine compartment wire harness connectors.
4. Remove the fasteners that secure each of the engine compartment wire harness ground eyelets to the vehicle body and chassis components.
5. Disengage each of the retainers that secure the engine compartment wire harness to the vehicle body and chassis components.

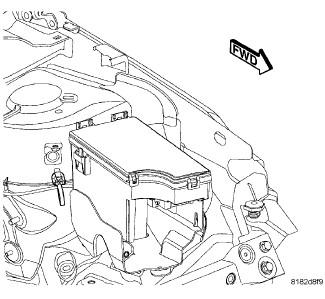

   Fig 1: Removing/Installing Totally Integrated Power Module

   Courtesy of CHRYSLER GROUP, LLC
6. Disengage and remove the TIPM housing from its mounting bracket.
7. Remove the TIPM and the engine compartment wire harness from the engine compartment as a unit.
