Sending Unit And Sensor, Fuel Level: Installation: Installation

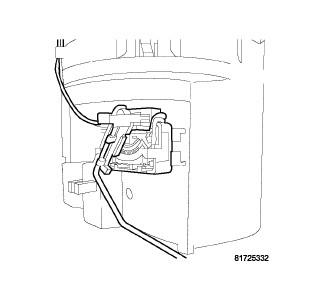

Fig 1: Groove In Back Side Of Level Sensor

Courtesy of CHRYSLER GROUP, LLC

1 - WIRING GROOVE

1. Wrap wires into groove in back of level sensor.
2. While feeding wires into guide grooves (1).

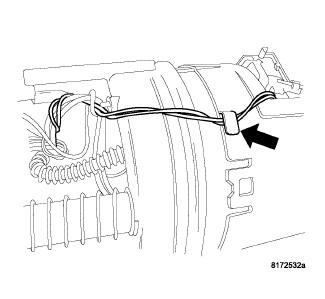

   Fig 2: Fuel Level Sensor Wire Retainer

   Courtesy of CHRYSLER GROUP, LLC

   1 - FUEL LEVER SENSOR

3. Slide level sensor up into channel until it snaps into place. Ensure tab at bottom of sensor locks in place.
4. Install wire into wire retainer.

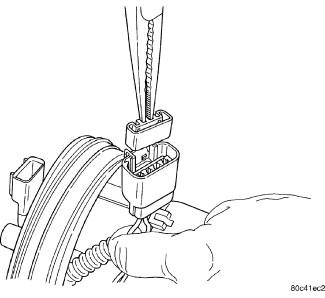

   Fig 3: Wedge Lock

   Courtesy of CHRYSLER GROUP, LLC
5. Install level sensor wires in connector. Push the wires up through the connector and then pull them down until they lock in place. Ensure signal and ground wires are installed in the correct position. Refer to the appropriate wiring information.
6. Install locking wedge on connector.

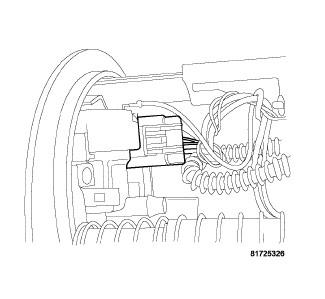

   Fig 4: Fuel Pump/Level Sensor Electrical Connector

   Courtesy of CHRYSLER GROUP, LLC

   1 - ELECTRICAL CONNECTOR

7. Push connector up into bottom of fuel pump module electrical connector (1).
8. Install fuel pump module. Refer to MODULE, FUEL PUMP, INSTALLATION .
