Checking The Cooling Fan Performance: Notes

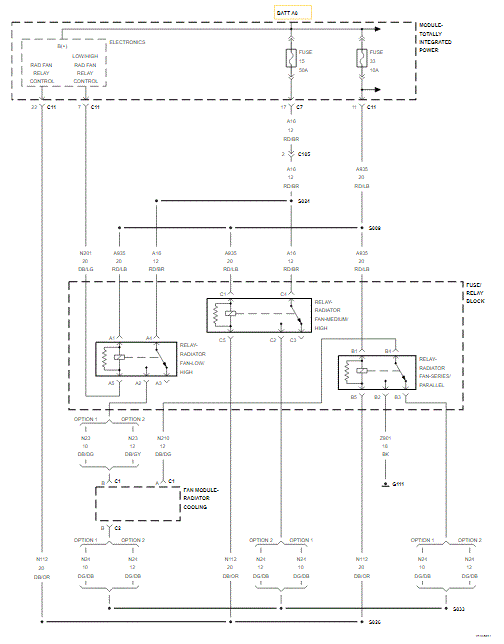

Fig 1: Cooling Fan Wiring Diagram
GC0099528Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
