Module, Glow Plug [ENE]: Installation: Installation

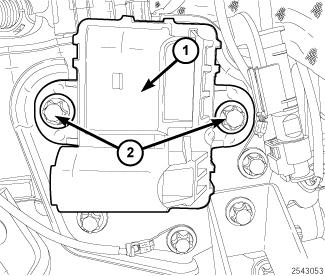

Fig 1: Identifying Glow Plug Module & Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Install the glow plug module (1). Tighten bolt to 9 N.m (80 in. lbs.).

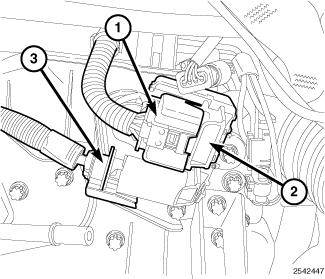

   Fig 2: Identifying Glow Plug Harness Connector, Glow Plug Module & Power Supply Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the power supply harness connector (3) to the glow plug module (2).
3. Connect the glow plug harness connector (1).
4. Connect the fuel lines.
5. Install the air cleaner assembly. Refer to BODY, AIR CLEANER, INSTALLATION .
6. Connect the negative battery cable.
