Diagnostic Test

  1. TEST FOR INTERMITTENT CONDITION
    1. Turn the ignition on.
    2. With the scan tool, record and erase DTCs
    3. Try to operate the Driver Window up and down several times.
    4. Wait 30 seconds.
    5. With the scan tool, read DTCs.

      Does the scan tool display B185A-DRIVER WINDOW POSITION SENSOR CIRCUIT PERFORMANCE?

      Yes

      • Go To  2.

      No

      • The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  2. (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL SHORT TO GROUND

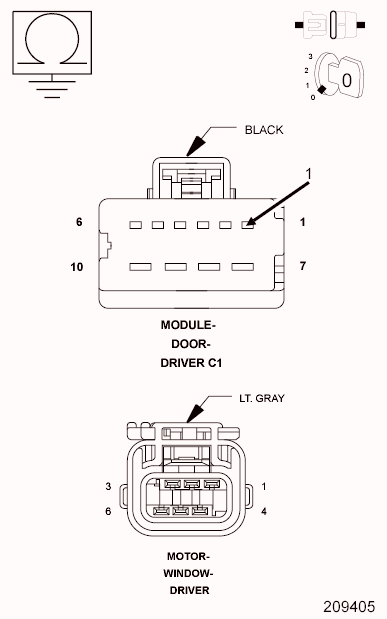

    Fig 1: Checking Driver Window Hall Sensor A Signal For A Short To Ground
    GC0133456Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the Driver Window Motor connector.
    3. Disconnect the Driver Door Module C1 connector.
    4. Measure the resistance between Ground and the (Q301) Driver Window Hall Sensor A Signal circuit.

      Is the resistance below 10, 000.0 ohms?

      Yes

      • Repair the (Q301) Driver Window Hall Sensor A signal circuit for a short to ground.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  3.
  3. (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT SHORT TO GROUND

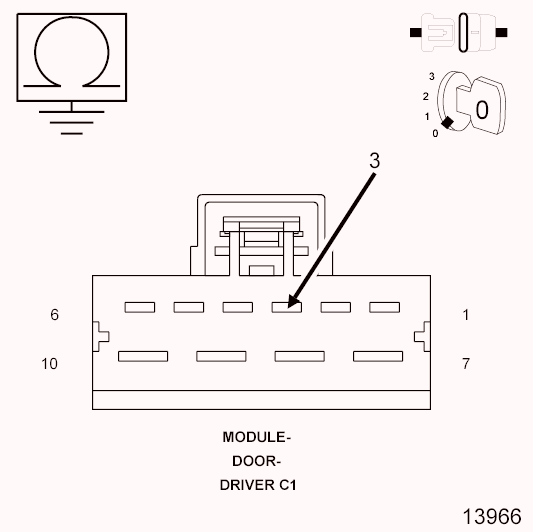

    Fig 2: Checking Driver Window Hall Sensor B Signal Circuit For Short To Ground
    GC0106033Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between Ground and the (Q303) Driver Window Hall Sensor B Signal circuit.

      Is the resistance below 10, 000.0 ohms?

      Yes

      • Repair the (Q303) Driver Window Hall Sensor B Signal circuit for a short to ground.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  4.
  4. (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT OPEN

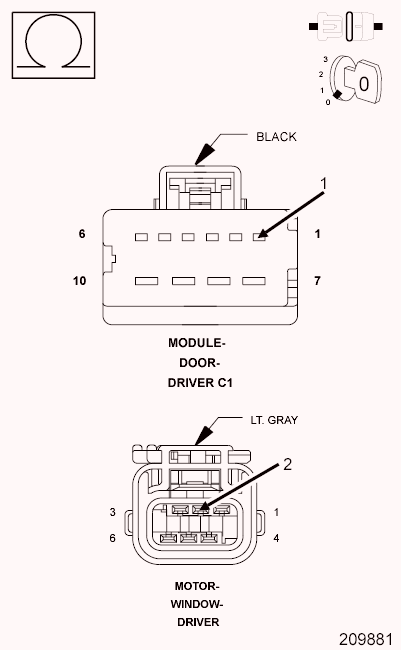

    Fig 3: Checking Driver Window Hall Sensor A Signal Circuit For An Open
    GC0133457Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (Q301) Driver Window Hall Sensor A Signal circuit between the Motor connector and the Module C1 connector.

      Is the resistance below 1.0 ohms?

      No

      • Repair the (Q301) Driver Window Hall Sensor A Signal circuit for an open.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      Yes

      • Go To  5.
  5. (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT OPEN

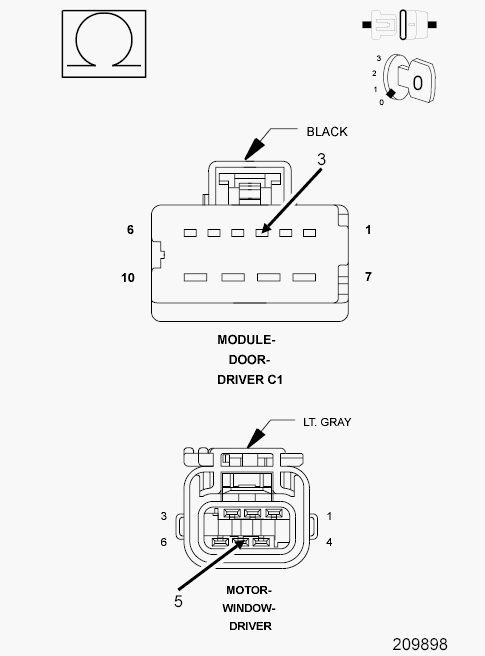

    Fig 4: Checking Driver Window Hall Sensor B Signal Circuit For An Open
    GC0133458Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (Q303) Driver Window Hall Sensor B Signal circuit between the Motor connector and the Module C1 connector.

      Is the resistance below 1.0 ohms?

      No

      • Repair the (Q303) Driver Window Hall Sensor B Signal circuit for an open.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      Yes

      • Go To  6.
  6. (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT SHORTED TO THE (Q991) DRIVER WINDOW HALL SENSOR RETURN CIRCUIT

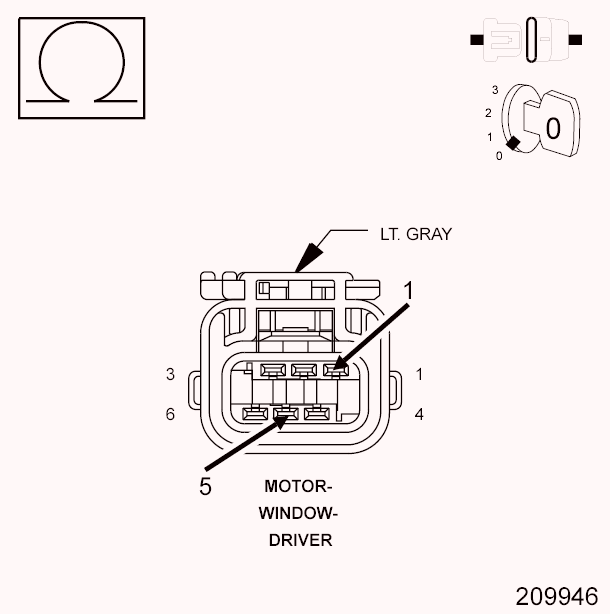

    Fig 5: Checking Driver Window Hall Sensor B Signal Circuit For A Short To The Driver Window Hall Sensor Return Circuit
    GC0133459Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (Q303) Driver Window Hall Sensor B Signal circuit and the (Q991) Driver Window Hall Sensor Return Ground circuit.

      Is the resistance below 10, 000.0 ohms?

      No

      • Repair the (Q303) Driver Window Hall Sensor B Signal circuit for a short to the (Q991) Driver Window Hall Sensor Return circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      Yes

      • Go To  7.
  7. (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORTED TO THE (Q991) DRIVER WINDOW HALL SENSOR RETURN CIRCUIT

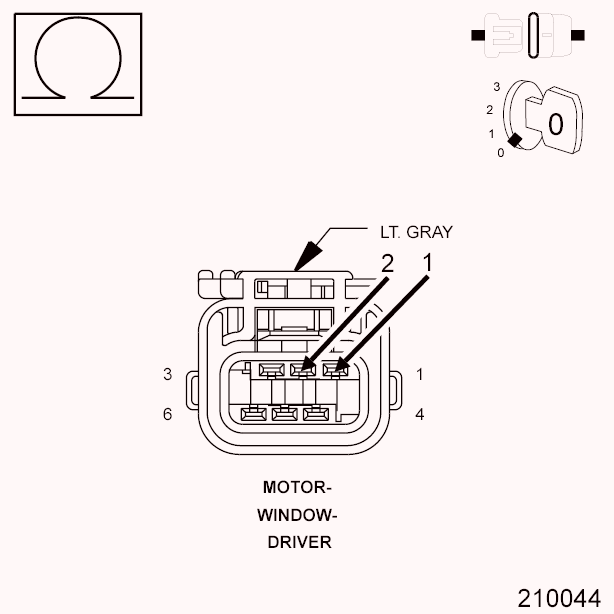

    Fig 6: Checking Driver Window Hall Sensor A Signal Circuit For A Short To The Driver Window Hall Sensor Return Circuit
    GC0133460Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (Q301) Driver Window Hall Sensor A Signal circuit and the (Q991) Driver Window Hall Sensor Return circuit.

      Is the resistance below 10, 000.0 ohms?

      No

      • Repair the (Q301) Driver Window Hall Sensor A Signal circuit for a short to the (Q991) Driver Window Hall Sensor Return circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      Yes

      • Go To  8.
  8. (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORT TO (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT

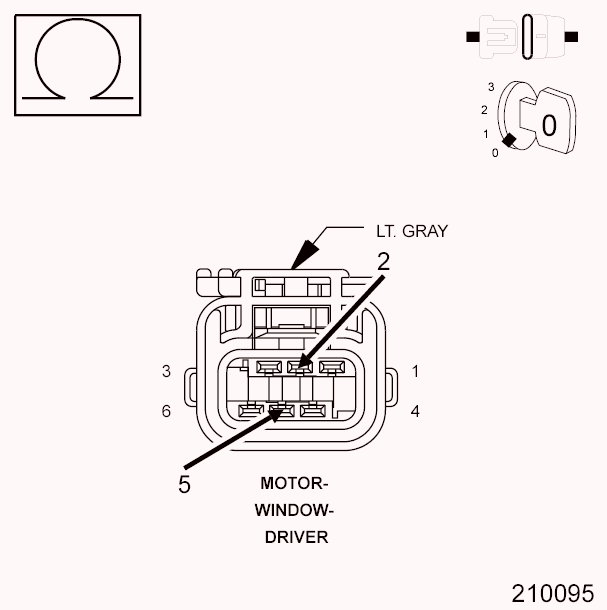

    Fig 7: Checking Driver Window Hall Sensor A Signal Circuit For A Short To Driver Window Hall Sensor B Signal Circuit
    GC0133461Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (Q301) Driver Window Hall Sensor A Signal circuit and the (Q303) Driver Window Hall Sensor B Signal circuit.

      Is the resistance below 1, 000.0 ohms?

      Yes

      • Repair the (Q301) Driver Window Hall Sensor A Signal circuit for a short to the (Q303) Driver Window Hall Sensor B Signal circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Replace the Window Motor in accordance with service information.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
