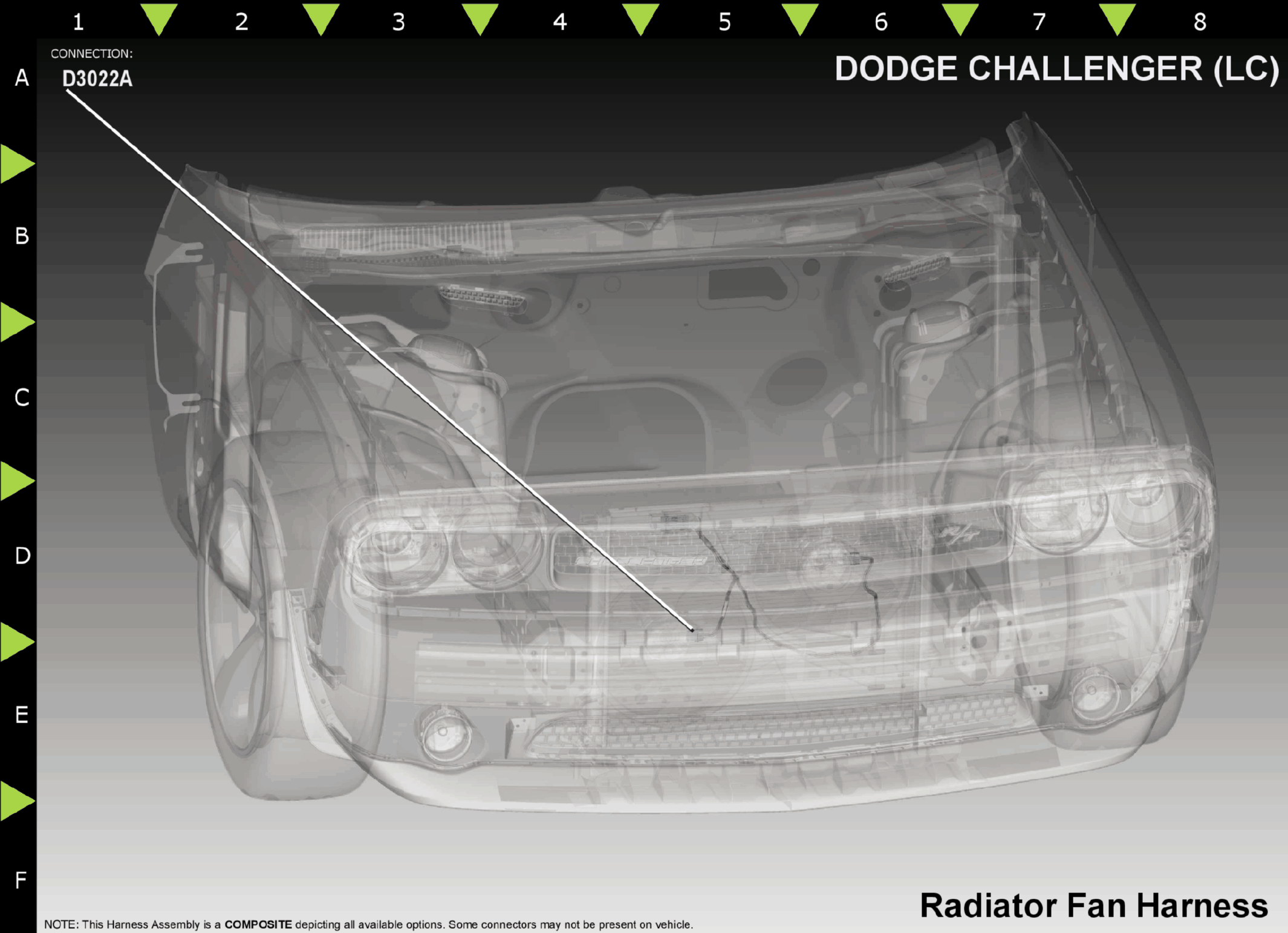

Fan Module-Radiator Cooling (D3022A)
Harness-Family: Radiator_Fan
Color: BLACK
Gender: FEMALE
Part Number: 12020556
Part Description: TAXI CONNECTOR M/P 480
Connector No: D3022A
Option: Standard
Repair Kit Part Number: 68032865AB
Cavity Count: 2
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| A | N210 | DB | 10 | RAD FAN HIGH/LOW CONTROL FEED | N/A | ||
| B | N24 | DB | 10 | HIGH SPEED RAD FAN CONTROL | N/A | ||
| A | Z903 | BR | 10 | GROUND | N/A | ||
|
|||||||
