Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 1326018-1

Part Description: PLUG ASSEMBLY, 32P UNSEALED 0.64MM CONN

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 32

Fig 1: Module-Occupant Restraint Controller C1 Connector End View
GCWD1025410Courtesy of CHRYSLER

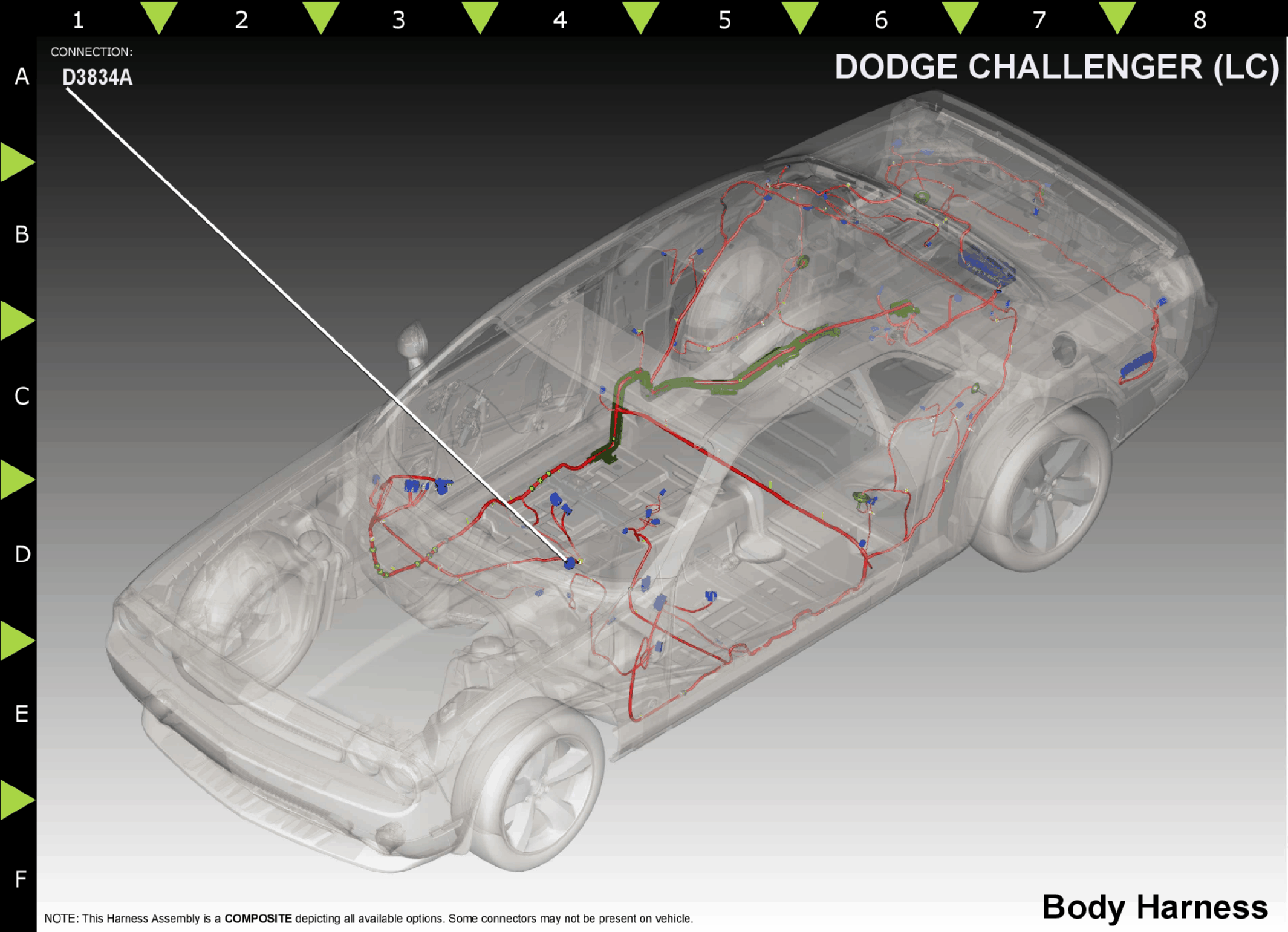

Fig 2: Module-Occupant Restraint Controller C1 Component Location
GCWD1209167Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A29 R1 LB/WT 20 LEFT CURTAIN SQUIB 1 LINE 2 N/A
A15 R13 LG/TN 20 LEFT SIDE IMPACT SENSOR 1 SIGNAL N/A
A22 R130 LG/DB 20 LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
A24 R14 TN/LG 20 RIGHT SIDE IMPACT SENSOR 1 SIGNAL N/A
A23 R140 DB/LG 20 RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
A19 R15 TN 20 LEFT SIDE IMPACT SENSOR 1 GROUND N/A
A20 R150 DB 20 LEFT SIDE IMPACT PRESSURE SENSOR GROUND N/A
A16 R16 BR/LG 20 RIGHT SIDE IMPACT SENSOR 1 GROUND N/A
A21 R160 LG 20 RIGHT SIDE IMPACT PRESSURE SENSOR GROUND N/A
A32 R2 WT/LB 20 RIGHT CURTAIN SQUIB 1 LINE 2 N/A
A13 R261 LB/WT 20 DRIVER SEAT POSITION SENSOR DATA N/A
A17 R263 LB/VT 20 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
A9 R283 LB/DG 20 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
A11 R284 LB/LG 20 PASSENGER SEAT OCCUPANT DETECTION RETURN N/A
A30 R3 LB/OR 20 LEFT CURTAIN SQUIB 1 LINE 1 N/A
A31 R4 OR/LB 20 RIGHT CURTAIN SQUIB 1 LINE 1 N/A
A25 R5 LB/VT 20 LEFT SEAT THORAX SQUIB 1 LINE 2 N/A
A1 R503 LG/YL 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
A4 R504 LB/YL 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
A2 R505 LG/DG 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
A3 R506 LB/DG 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
A5 R53 LG/YL 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
A8 R54 LB/YL 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
A6 R55 LG/DG 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
A7 R56 LB/DG 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
A10 R58 LB/GY 20 PASSENGER SEAT BELT SWITCH SENSE N/A
A28 R6 VT/LB 20 RIGHT SEAT THORAX SQUIB 1 LINE 2 N/A
A12 R60 LB/TN 20 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
A26 R7 LG/GY 20 LEFT SEAT THORAX SQUIB 1 LINE 1 N/A
A27 R8 GY/LG 20 RIGHT SEAT THORAX SQUIB 1 LINE 1 N/A
(1) Pins not listed are not used for this connector
