Module, Powertrain Control, 2.8L Diesel: Installation: Installation

WARNING: This page is about a different car, the 2012 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

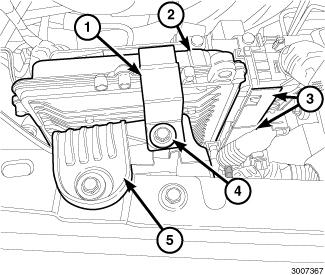

Fig 1: Powertrain Control Module (PCM)

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Use a diagnostic scan tool to reprogram the new Powertrain Control Module (PCM) with the vehicles original identification number (VIN) and the vehicles original mileage. If this step is not done, a Diagnostic Trouble Code (DTC) may be set.

Check pin connectors in PCM and Harness connectors for corrosion or damage. Also check pin heights in connectors. Pin heights should all be the same. Repair as necessary before installing harness connectors.
Connect the two harness connectors (3) to PCM (2) and install PCM (2) in mounting bracket (5).
Install PCM hold down bracket (1). Tighten bolt (4) to 4 N.m (35 in. lbs.).
Connect the negative battery cable.
Use a diagnostic scan tool to reprogram new PCM (2) with vehicles original Vehicle Identification Number (VIN) and original vehicle mileage.
