Module/Programming Order Replacement Guide

MODULE/PROGRAMMING ORDER REPLACEMENT GUIDE

Match the module row with the condition that applies, after module replacement follow the chart down and program the modules in the chart order.

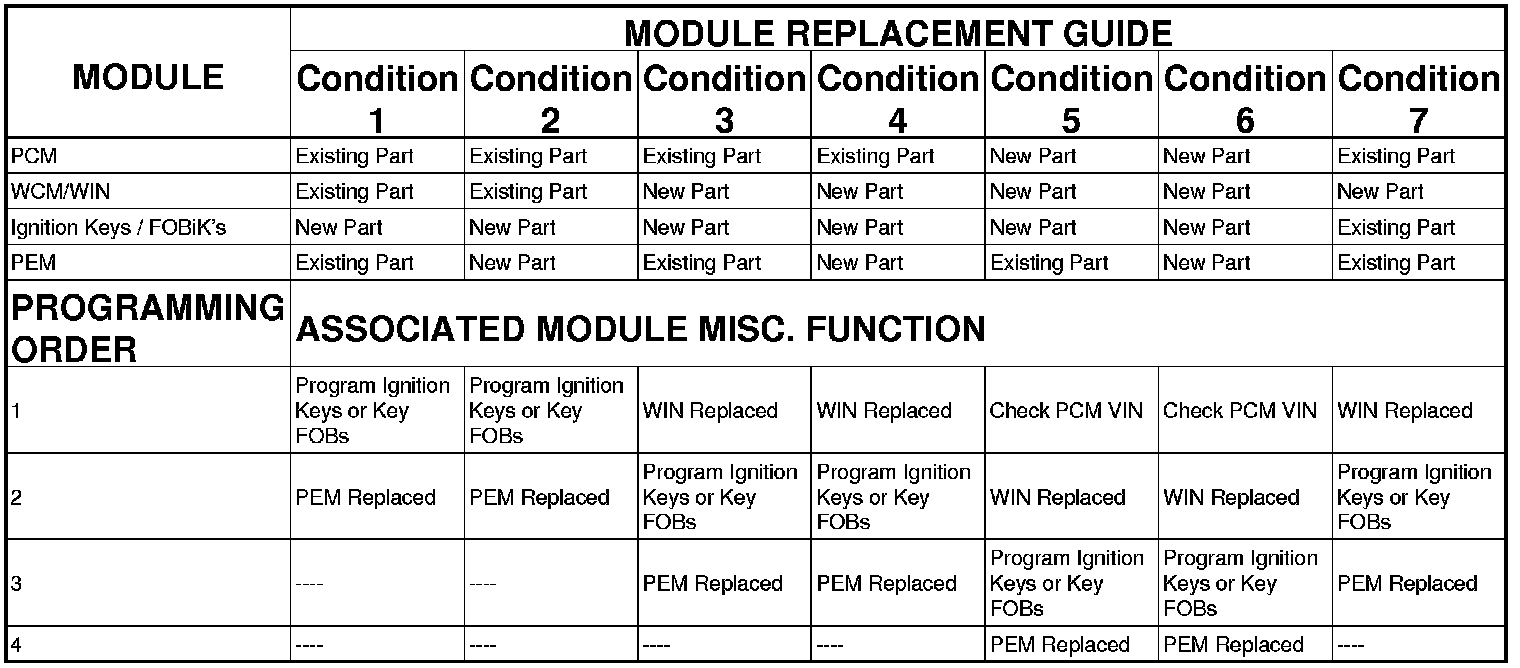

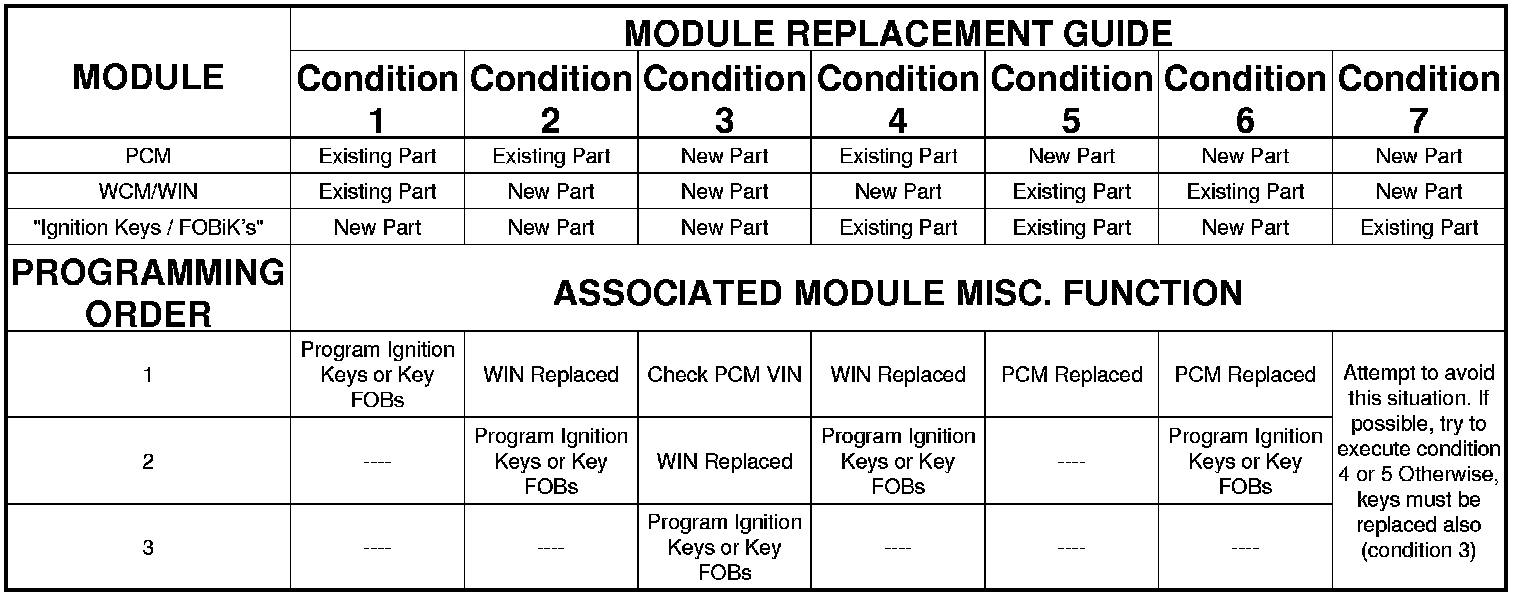

WIN WITHOUT PEM MODULE






WIN WITH PEM MODULE, CONDITION 1 - 9

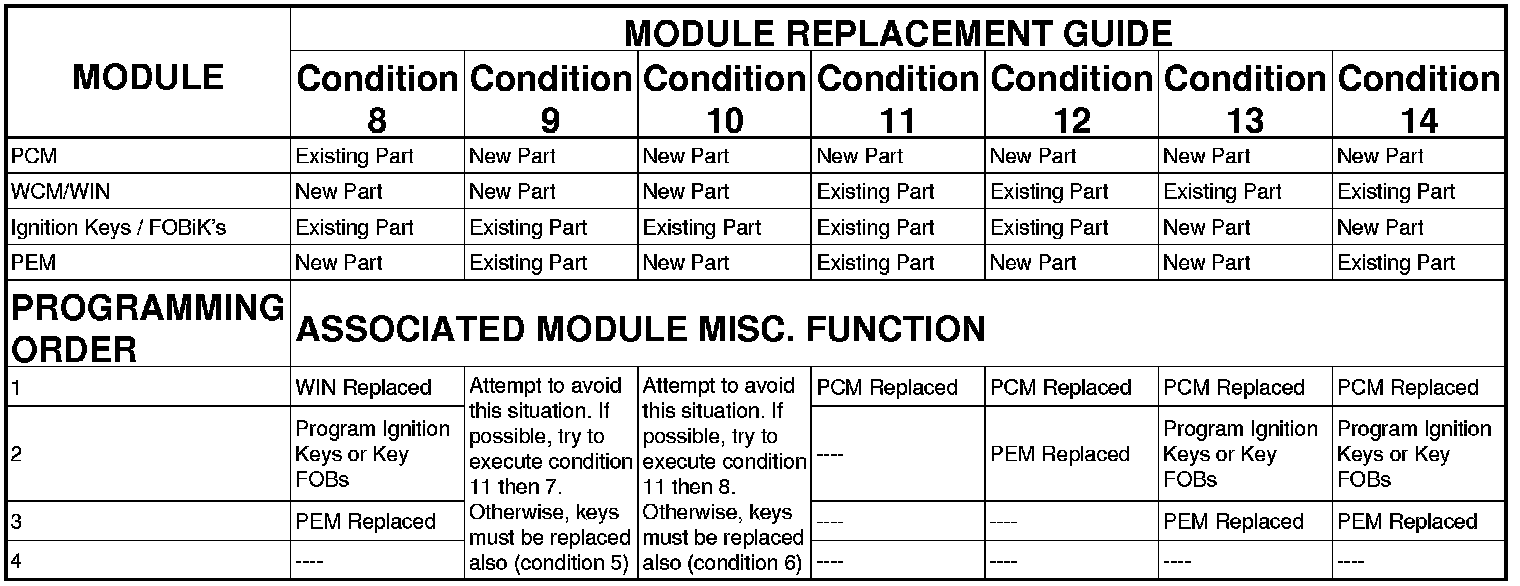

WIN WITH PEM MODULE, CONTINUED CONDITION 8 - 14
