Alignment: Specifications: Specifications



Wheel Alignment

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height.

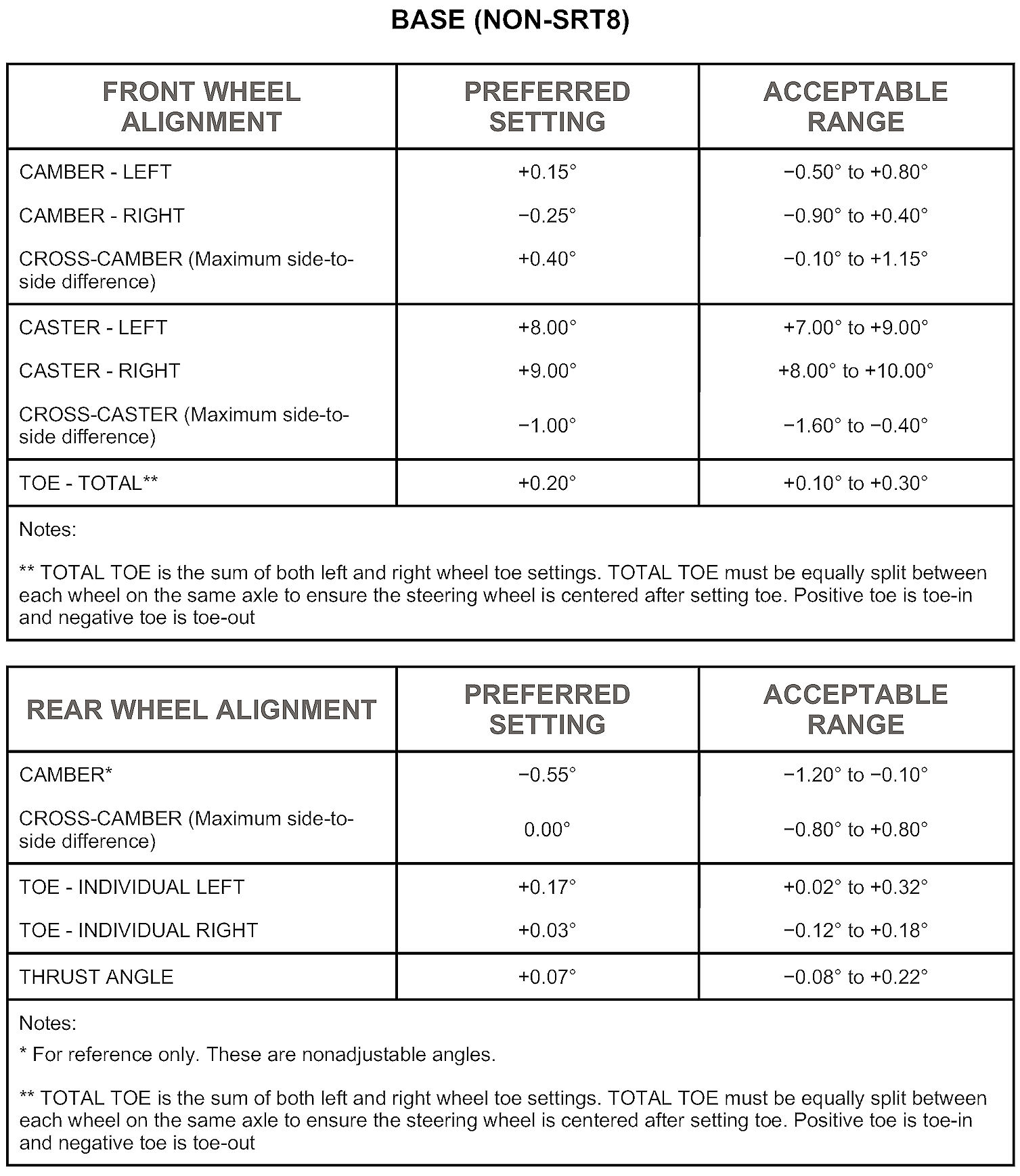

BASE (NON-SRT8):

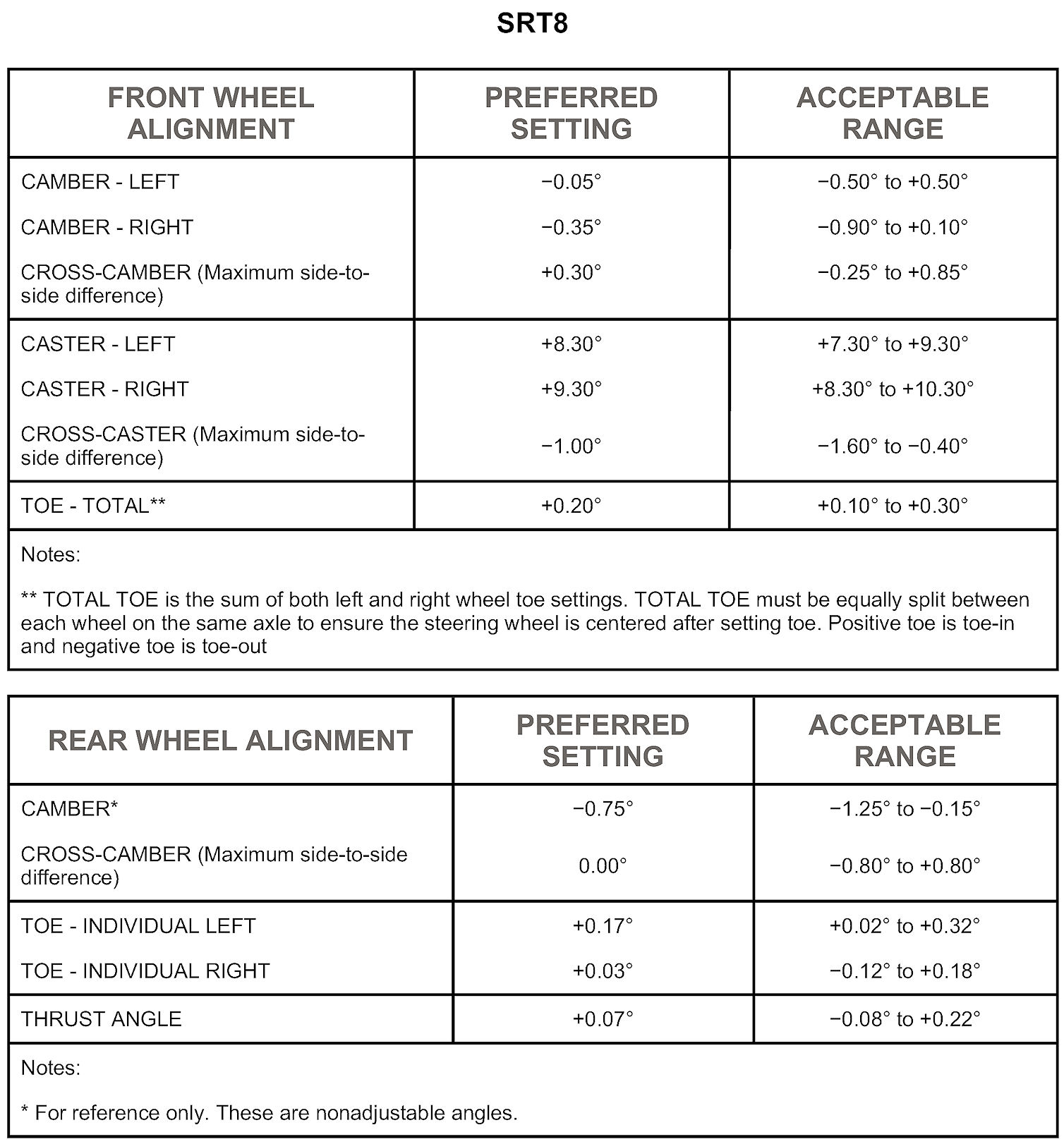

SRT8:
