Power Seat Memory Switch - Removal

REMOVAL

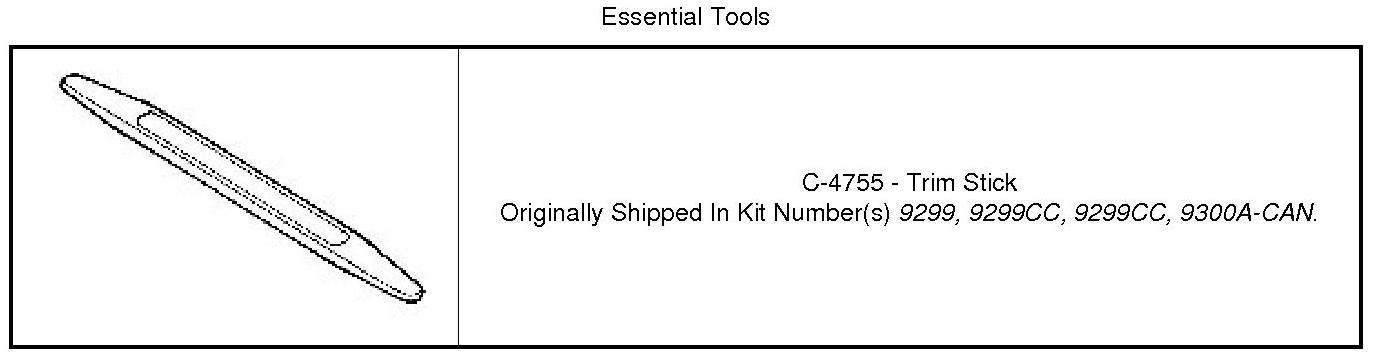

Special Tools:






NOTE: Take the proper precautions to protect the face of the door panel from cosmetic damage while performing this procedure.





1. Disconnect and isolate the negative battery cable.
2. Remove the driver door trim panel and place it on a workbench Front Door Trim Panel - Removal.

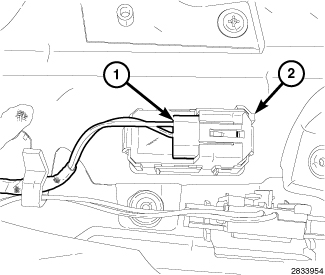

3. Disconnect the wire harness connector (1) from the memory seat switch (2).

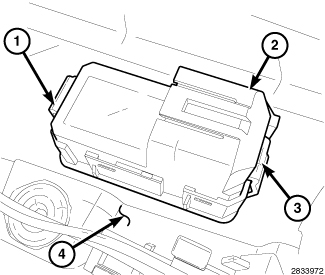

4. Using Trim Stick or equivalent, gently disengage the two retaining tabs (1 and 3) that secure the memory seat switch (2) to the back of the driver door trim panel (4).
5. Remove the memory seat switch from the driver door trim panel.
