Front Blower Motor Power Module - Description

DESCRIPTION

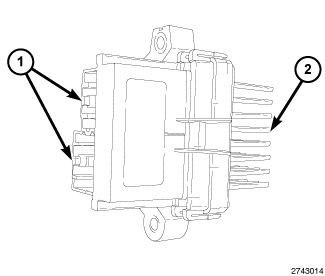

NOTE: Automatic Temperature Control (ATC) shown. Manual Temperature Control (MTC) similar.





A blower motor power module is used on this model when equipped with either the Automatic Temperature Control (ATC) heating-A/C system, or the Manual Temperature Control (MTC) heating-A/C system.

The blower motor power module is mounted to the passenger side of the HVAC housing, near the blower motor. The blower motor power module consists of a molded plastic housing with mounting plate and two integral connector receptacles (1). Concealed behind the mounting plate is the power module electronic circuitry and a multiple, cylindrical finned, heat sink (2).The blower motor power module is accessed for service from under the instrument panel.
