Rear Blower Motor Power Module - Description

DESCRIPTION





A blower motor power module is used on this model when equipped with either the rear Automatic Temperature Control (ATC) heating-A/C system, or the rear Manual Temperature Control (MTC) heating-A/C system.

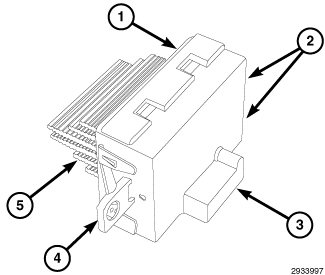

The blower motor power module consists of a molded plastic case (1) with electronic circuitry, two integral mounting tabs (2), an electrical connector cavity (3) and a retaining bracket (4). Behind the case is a finned heat sink (5). The rear blower motor power module is mounted in rear heater-A/C housing, located on the passenger side of the vehicle, behind the rear quarter trim panel.
