Front Blower Motor Power Module - Installation

INSTALLATION

NOTE: Automatic Temperature Control (ATC) shown. Manual Temperature Control (MTC) similar.

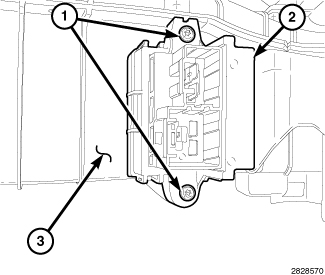

1. Position the blower motor power module (2) onto the HVAC housing (3).
2. Install the two screws (1) that secure the blower motor power module to the HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).

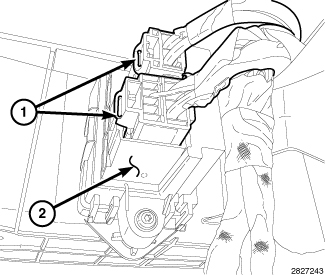

3. Connect the two wire harness connectors (1) to the blower motor power module (2).






NOTE: Illustration shown with instrument panel removed from view for clarity.

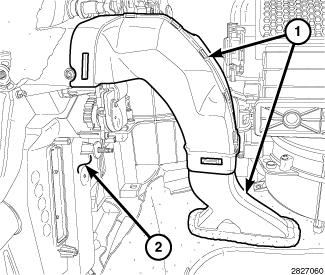

4. Connect the passenger side floor ducts (1) to the HVAC housing (2).
5. Install the passenger side instrument panel silencer.
6. Reconnect the negative battery cable.
