Transmission Solenoid And TRS Assembly - Installation

INSTALLATION










1. Place TRS selector plate in the PARK position.
2. Position the transmission solenoid/TRS assembly onto the valve body. Be sure that both alignment dowels are fully seated in the valve body and that the TRS switch contacts are properly positioned in the selector plate

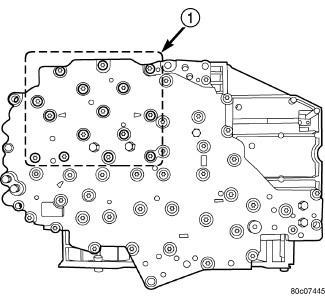

3. Install the bolts (1) (Figure 1) to hold the transmission solenoid/TRS assembly onto the valve body.
4. Tighten the solenoid assembly screws adjacent to the arrows cast into the bottom of the valve body first. Tighten the screws to 6 Nm (50 in.lbs.).
5. Tighten the remainder of the solenoid assembly screws to 6 Nm (50 in.lbs.).
6. Install the valve body into the transmission.
