Fuse: Locations

Totally Integrated Power Module

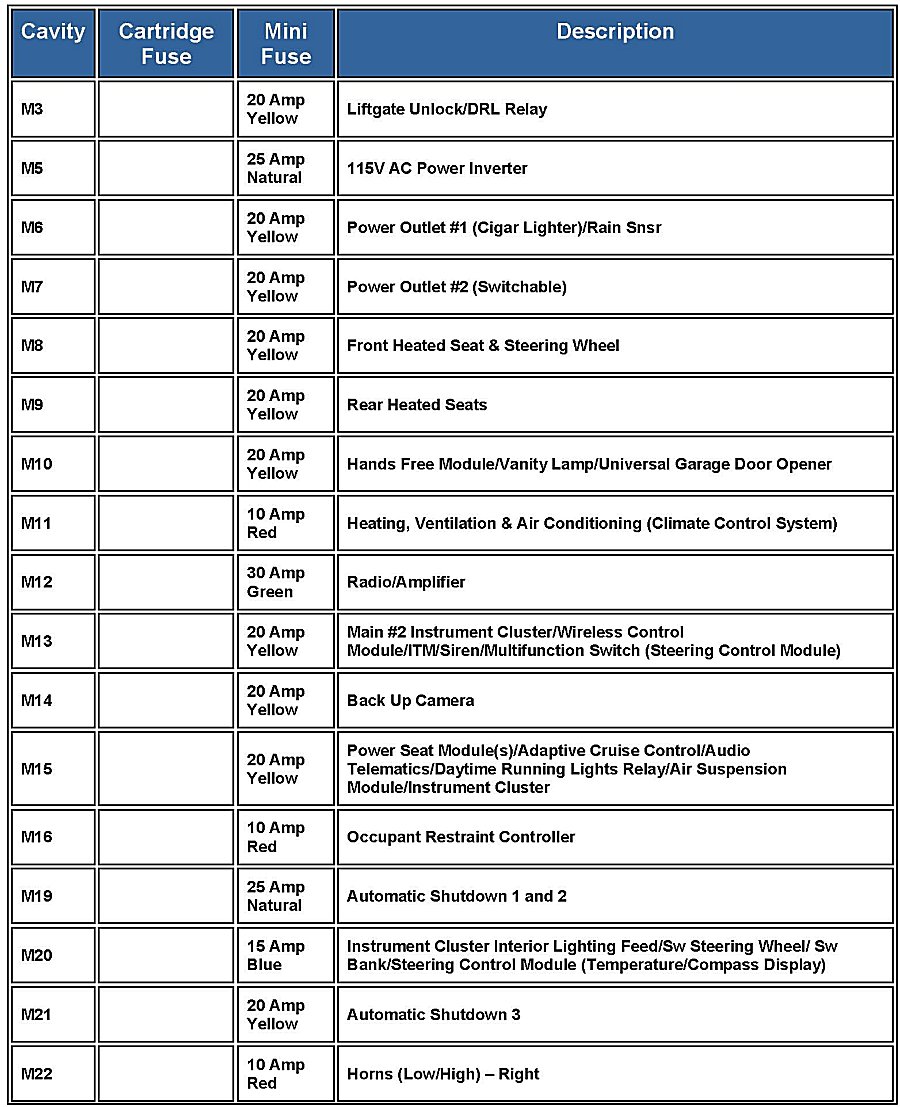

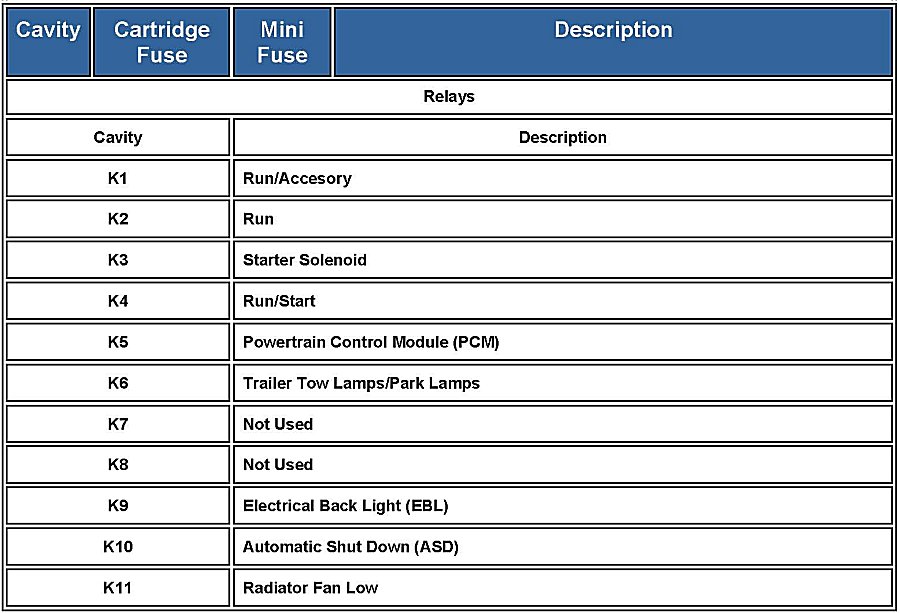

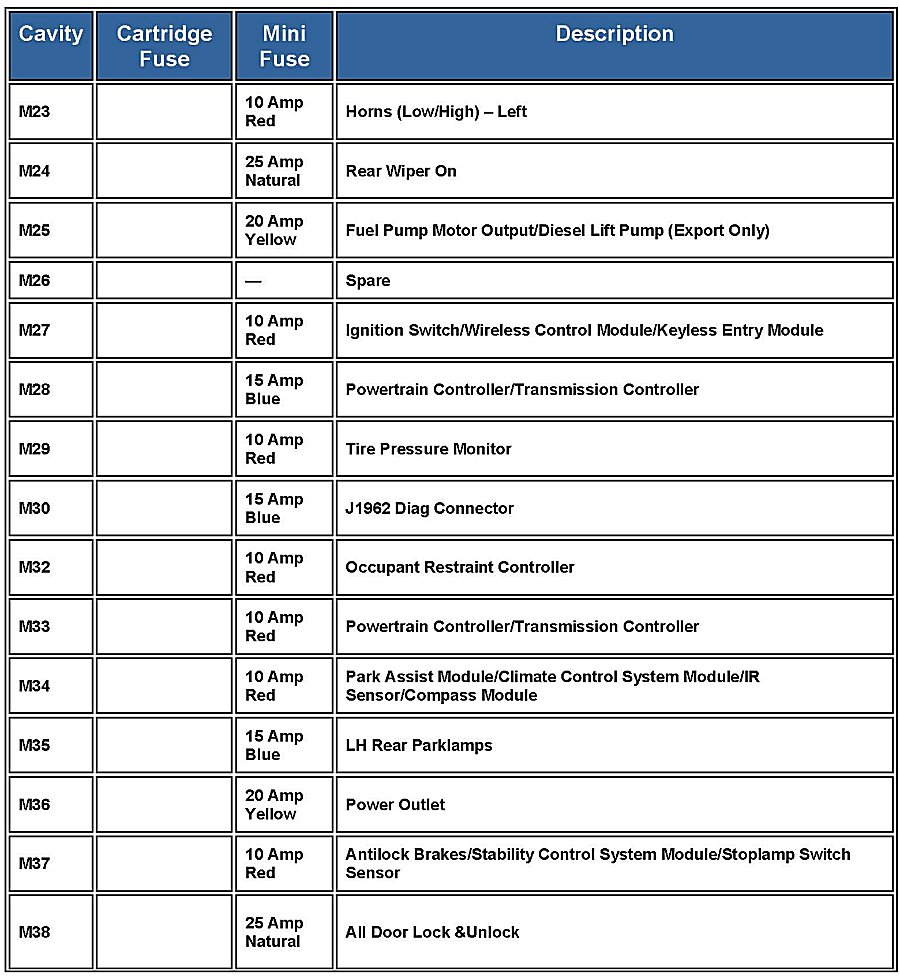

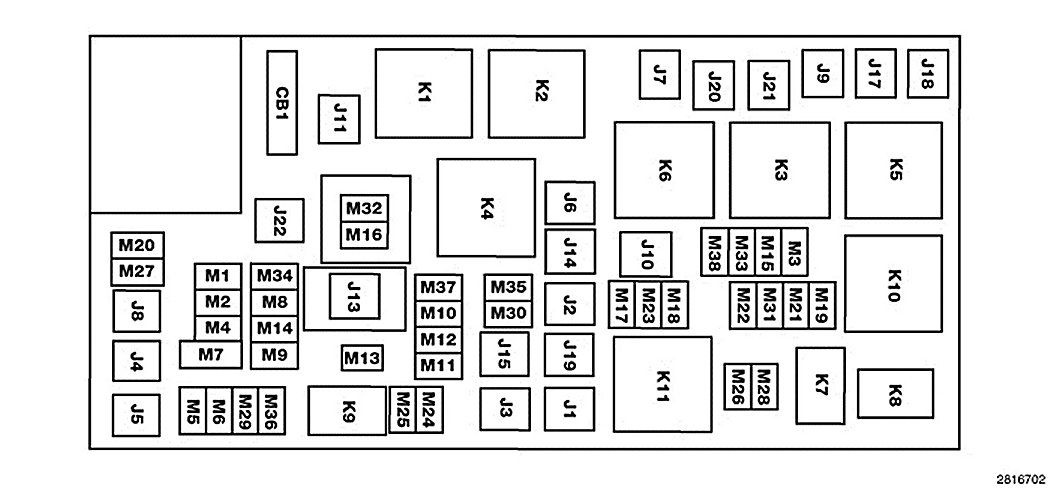

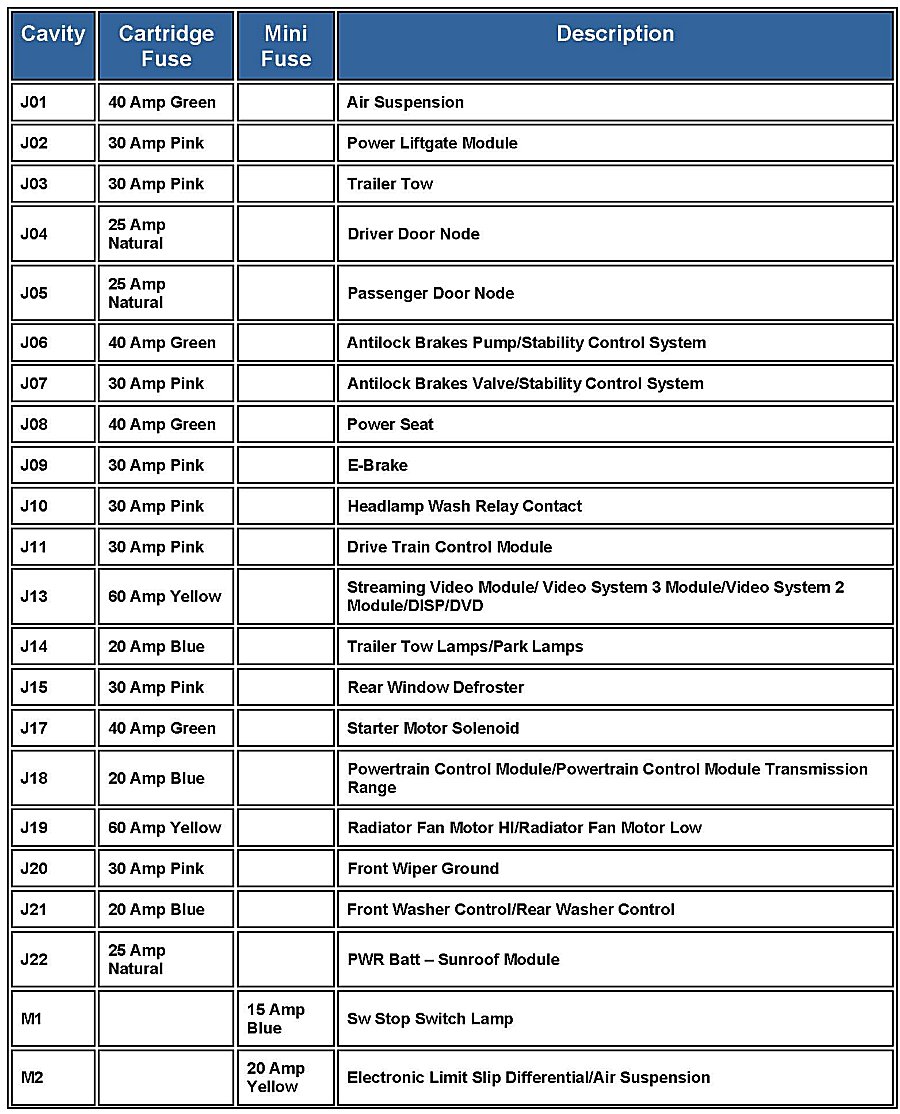

The Totally Integrated Power Module (TIPM) is located in the engine compartment. This center contains cartridge fuses and mini fuses. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.
