Module-Passive Entry C1 (D2505A)
Harness-Family: IP
Color: BLACK

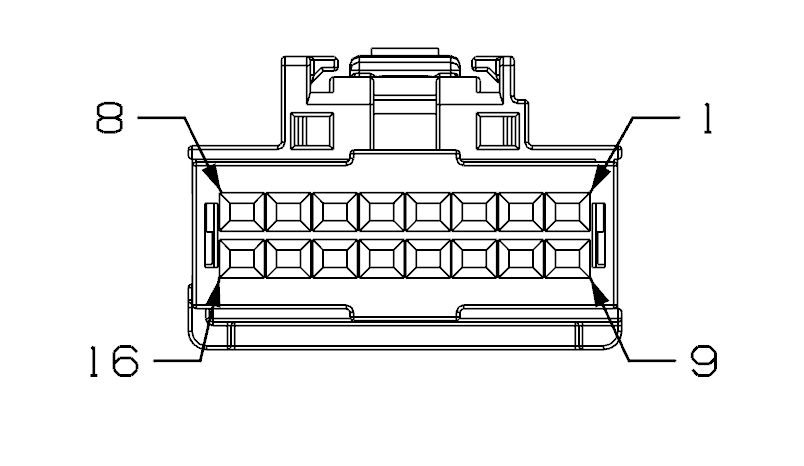

Gender: FEMALE
Part Number: 7287-8139-30
Part Description: Not Available

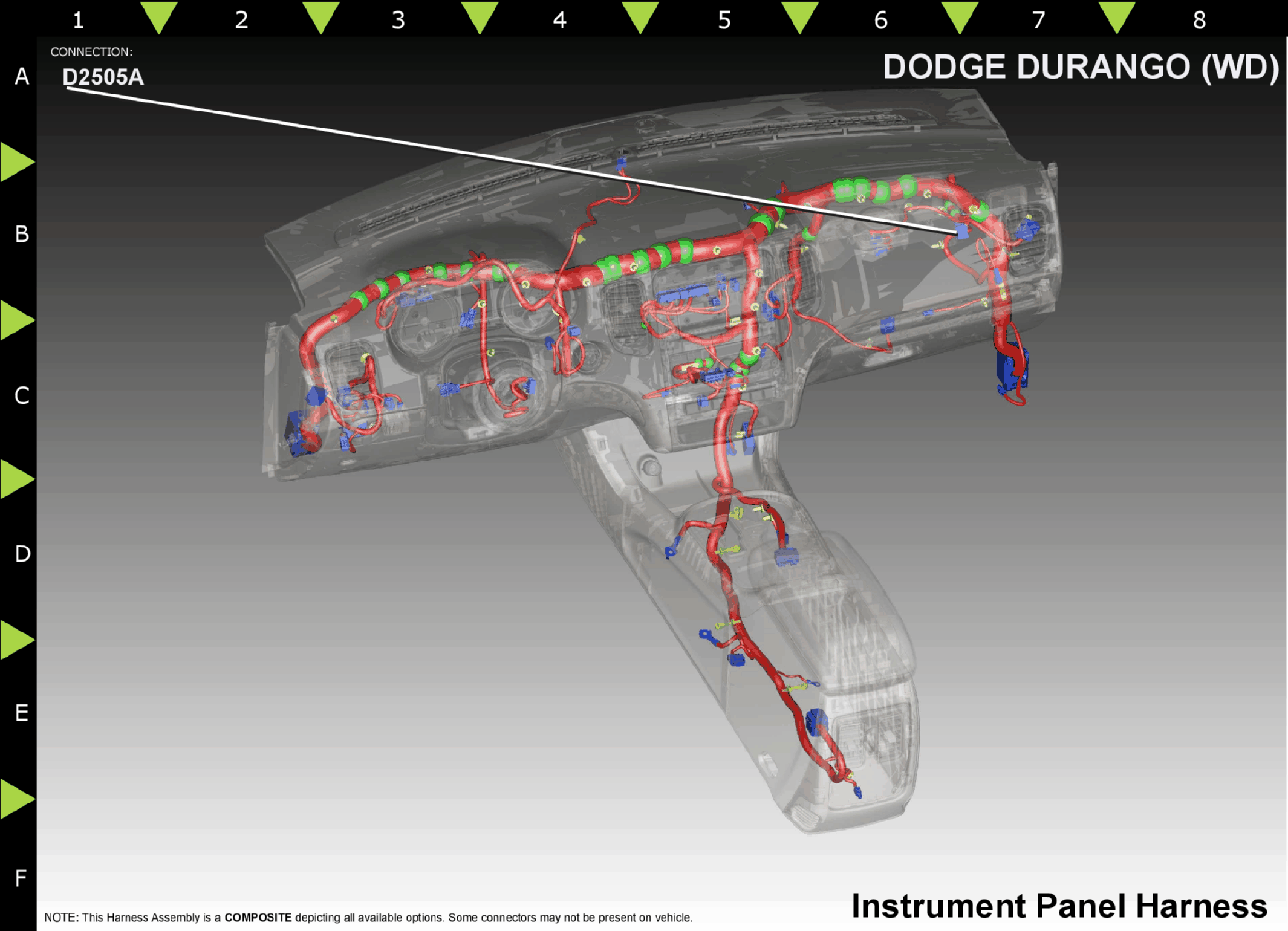

Connector No: D2505A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| A1 | A106 | LB/RD | 20 | FUSED B(+) | N/A | ||
| A12 | D51 | WT/BR | 22 | CAN C (-) | N/A | ||
| A13 | D52 | WT/LB | 22 | CAN C (+) | N/A | ||
| A3 | P124 | LG/WT | 22 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | N/A | ||
| A2 | P125 | LG/YL | 22 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | N/A | ||
| A10 | P30 | TN/DG | 22 | LIFTGATE HANDLE SWITCH SENSE | N/A | ||
| A11 | P39 | TN/LB | 22 | LIFTGATE EXTERIOR HANDLE SW RTN | N/A | ||
| A4 | P400 | LG/OR | 22 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | N/A | ||
| A5 | P401 | LG/VT | 22 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | N/A | ||
| A14 | Z911 | BK | 20 | GROUND | N/A | ||
|
|||||||
