Module-Steering Control C2 (D3816B)

Harness-Family: Steering_Wheel

Color: WHITE

Gender: FEMALE

Part Number: 174463-1

Part Description:070 SRS MLC 2POS PLUG HOUSING

Connector No: D3816B

Option: Standard

Repair Kit Part Number: 68068651AA

Cavity Count: 2

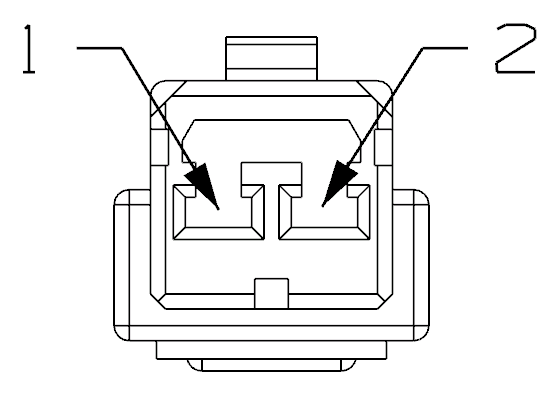

Fig 1: Module-Steering Control C2 Connector End View

Courtesy of CHRYSLER

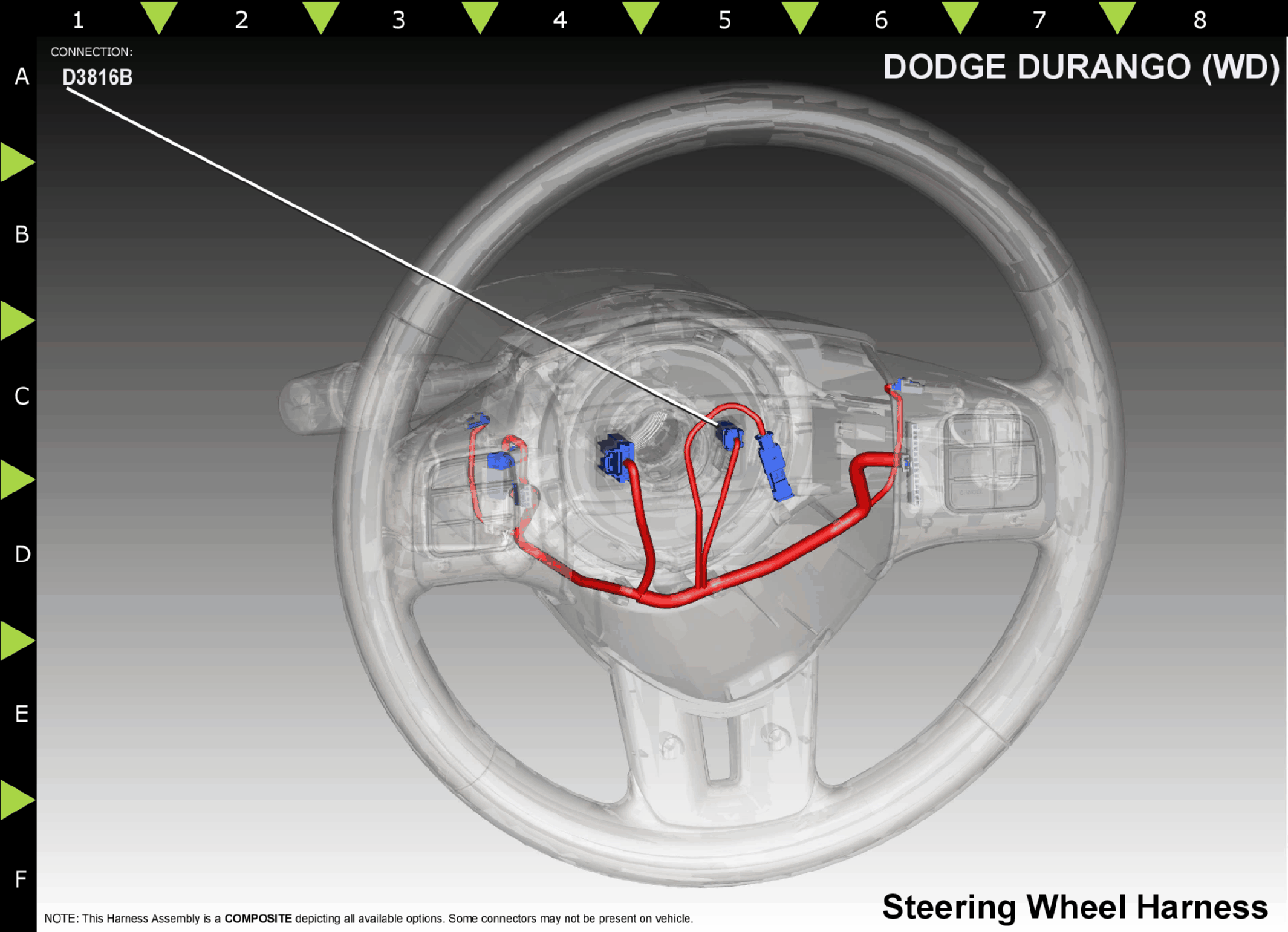

Fig 2: Module-Steering Control C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C91

HEATED STEERING WHEEL FEED

N/A

C986

HEATED STEERING WHEEL RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
