Module-Steering Control C3 (D3816C)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1419158-1

Part Description: 1X6P GET SOCKET HOUSING ASSEMBLY

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Module-Steering Control C3 Connector End View

Courtesy of CHRYSLER

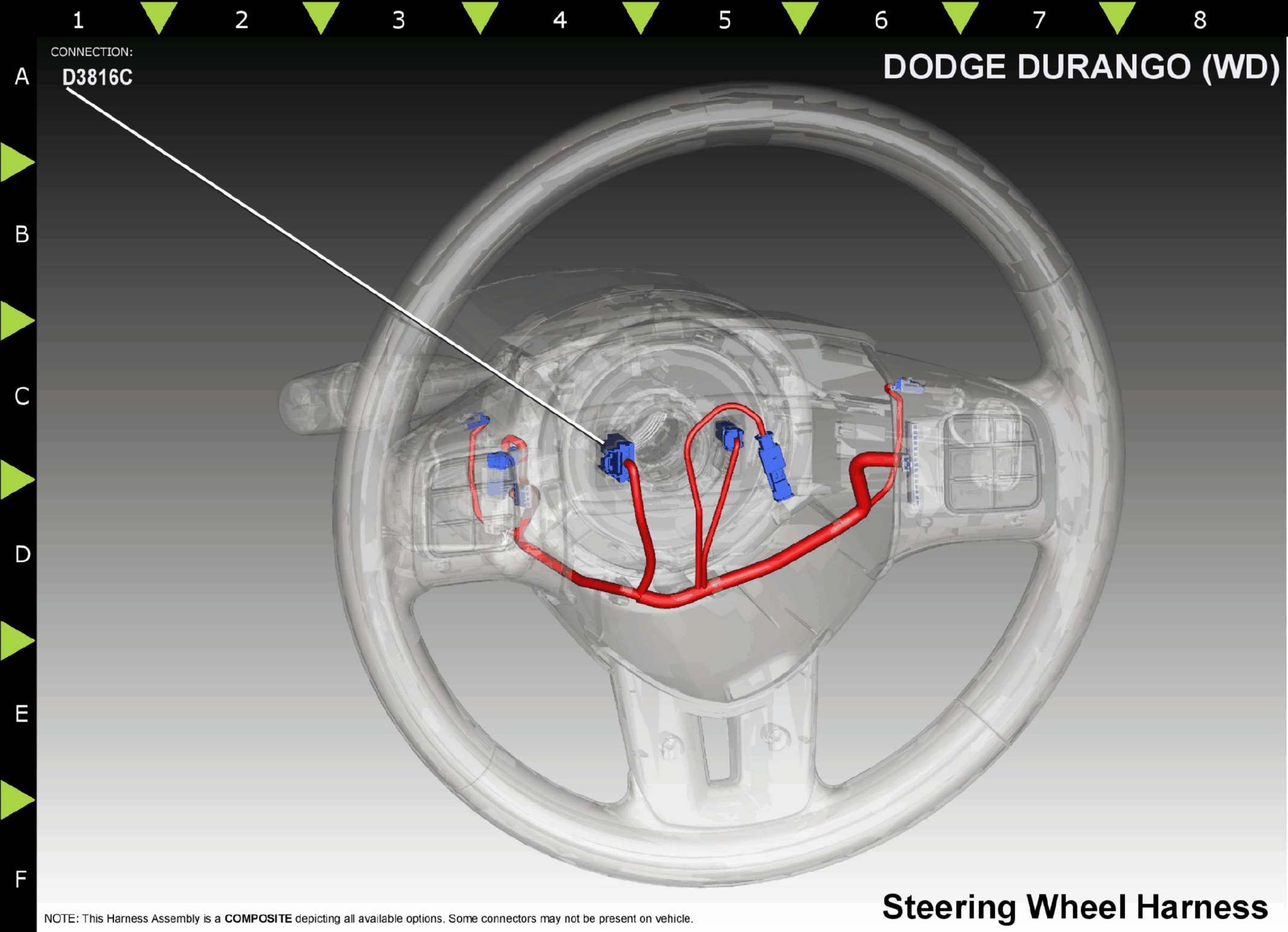

Fig 2: Module-Steering Control C3 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D507

LIN BUS

N/A

A909

FUSED B(+)

N/A

A929

FUSED B(+)

N/A

Z910

WT/YL

GROUND

N/A

Z912

WT/YL

GROUND

N/A

V72

YL/BK

S/C SIGNAL 2

N/A

V937

S/C SWITCH GROUND

N/A

V71

S/C SIGNAL 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
