Module-Transmission Control C1 (D3855A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 965222-1

Part Description: JPT CONNECTOR

Connector No: D3855A

Option: Standard

Repair Kit Part Number: 68040482AA

Cavity Count: 18

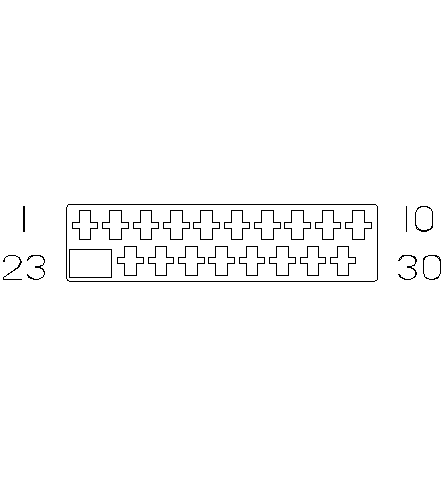

Fig 1: Module-Transmission Control C1 Connector End View

Courtesy of CHRYSLER

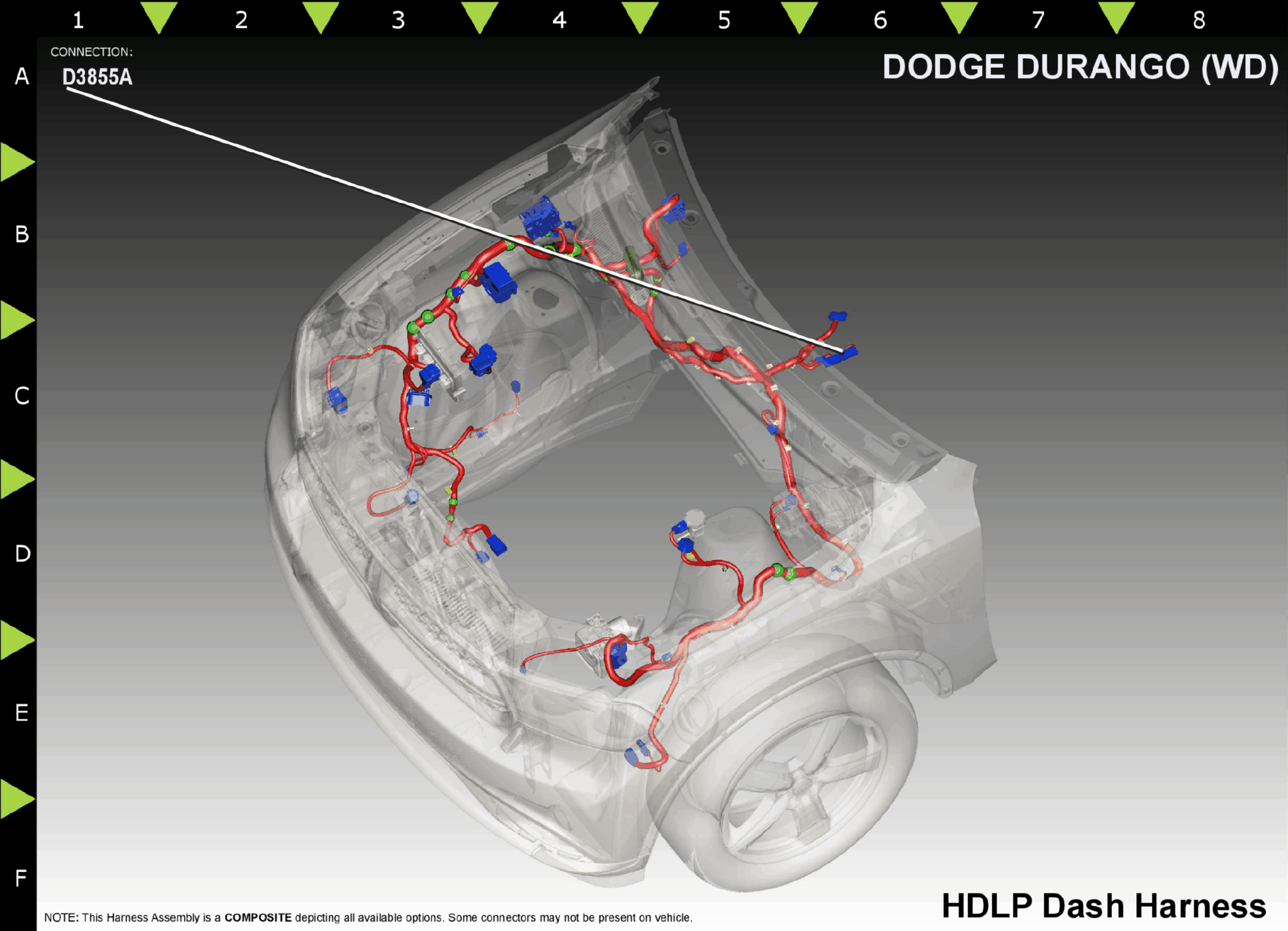

Fig 2: Module-Transmission Control C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F202

PK/GY

IGNITION RUN/START CONTROL OUTPUT

N/A

Z909

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
